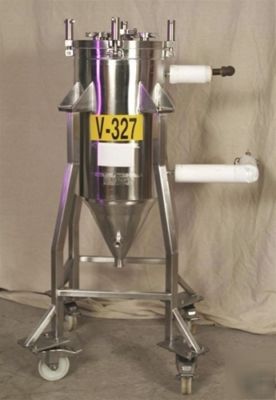

10 gal. jacketed sanitary stainless mixing reactor tank
10 Gal. Jacketed Sanitary Stainless Steel Reactor Tank
http:// /watch?v=ZefiXaAHObg
http:// /ProductDetails.asp?ProductCode=TL-V-327
23.5" Straight side wall (height) of tank.
15" diameter of tank not including ports for jackets.
Side ports sticks out 11.5" and 15.5" inches.
Has a flat top cover and conical bottom.
(5) 1.5" ports with 1.5" tri-clamp fittings. Comes with 4 end caps and one temperature probe/rod with 3/4" TC.
(1) 2" port with 2" tri-clamp fitting and an end cap.
(1) 1-1/4" thick cover on top.
Pipe Sizes: 1 inch coming out from tank, connected to a coupling for a larger 1.5" pipe.
Vessel MAX. Internal Working Pressure
MAX. External Working Pressure
(1) 1.5" drain port with 1.5" tri-clamp fitting at the bottom of the cone.
(1) 2" drain port with 2" TC fitting on one side of cone. Comes with an end cap.
(1) 3/4" ID threaded drain port on other side of cone. 1-3/8" OD
Manufactured by Cherry Burrell
