5PC ng-4189RK KC850 kennametal .189 grooving insert

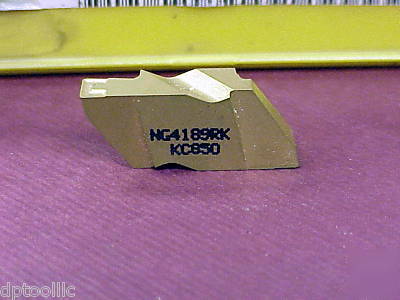

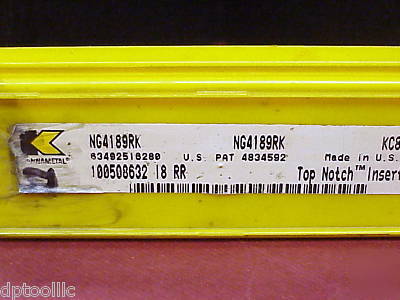

5pcs Kennametal Grooving Inserts NG-4189RK Gr. KC850 with built in chip control
* Insert Style: Top Notch Grooving Insert-Right Hand
* Chipbreaker Style: K style with a 10 degree positive top rake
* Number Cutting tips: 2 per insert
* Corner Radius on cutting tips .020/.025
* Maximum External Groove Depth: .250
* Maximum Internal Groove Depth: .245 at the minimum bore of 5.000"
* Maximum Depth of Cut: .080" in most metals
* Factory Selling Price" $37.00ea
The tool holders for the size #4 insert are series: NSR, NSL, NER, NEL and are available in square shank sizes of 1", 1-1/4" and 1-1/2". Boring bars have a series number of "A-NER4" or "A-NEL4 and come in shank sizes of 1-3/4" to 2.00". An example for the part number of a tool holder is NSR-244D. An example number for a boring bar is A28-NER4
We do have in our inventory tool holders and boring bars for this size insert.
