New swagelok quick connect ss-QC4-d-4PF

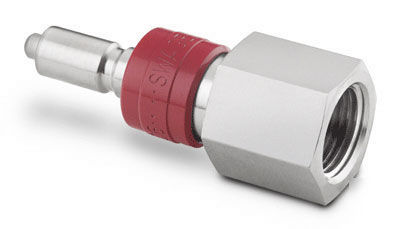

This listing is for a New in factory sealed plastic Swagelok Quick Connect, Double End Shut Off connector Part Number # SS-QC4-D-4PF. Specifications from Swagelok listed below.
Body Material - Stainless Steel
Series - Instrumentation Quick-Connect
End Connection 1 Size - 1/4 in
End Connection 1 Type - Female NPT
Configuration Type - DESO Stem
Paint - Painted red DESO sleeve
Flow Coefficient - Cv 0.2 - If coupled with a standard or reverse flow body,
Pressure Rating Coupled at Max Temp - 250 PSIG @ 400 F /17.2 BAR @ 204 C
Pressure Rating Coupled at Room Temp - 3000 PSIG @ 70 F /206 BAR @ 21 C
Pressure/Temp Rating (Coupling and Uncoupling) - 250 PSIG @ 70 F /17.2 BAR @ 21 C
Pressure Rating UnCoupled at Room Temp - 250 PSIG @ 70 F /17.2 BAR @ 21 C
