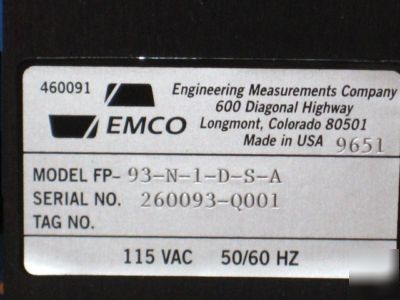

New emco fp-93-n-1-d-s-a programmable flow processor


This listing is for a programmable flow control remote terminal.
* Here is a rundown of the model # designations...
* N - Enclosure - Nema 4 Enclosure
* 1 - Power Supply - 115 VAC, 50/60 Hz
* D - Relay Output - DC Option
* S - Display - Standard Display
* A - Flow Input - Analog (4 to 20 mA)

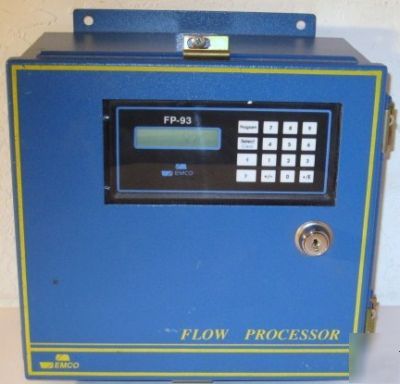

EMCO's FP unit is a microprocessor-based instrument for monitoring a variety of flows in an industrial environment. This programmable flow processor and remote terminal unit accurately calculates volume; mass and heat flow rates for steam, liquids, and gases and displays these variables in user-selectable, engineering units. Pressure and/or temperature compensation and an 8-point flow calibration curve may be used to enhance performance. Diagnostic routines constantly monitor the FP unit's performance, and the detection of a fault is automatically displayed.
* Single-board design for high reliability and low cost
* Displayed values with description and user-selectable engineering units
* Non-volatile memory for programmed data
* Isolated outputs for digital and analog control
* 16-bit resolution A/D converter for superb analog accuracy
* Battery-backed memory for statistical values and totalizers
* Self diagnostics and operational alarm monitoring
* Panel-mount unit or optional NEMA 4 enclosure
* Backlit display for viewing in all lighting conditions
* Fluid Types Steam condensate, water, water energy, liquid, air, natural gas, ideal gas, steam
* Storage Temperature -40 to 140 F (-40 to 60 C)
* Operating Temperature 32 to 122 F (0 to 50 C)
* Relative Humidity 0 to 95% (non-condensing)
* Compatibility EIA RS-232C
* Multi-drop capability Up to 10 units on a single RS-232C port (RS-423 compatible)
* Programmable baud rate 300, 600, 1200, 2400, 4800, 9600, 19200, or 38400 Baud
* Parity Even, odd, or none
* Connector Chassis-mount 9-Pin sub-D
For further details, please visit Emco's product page at http:// /em_prods/Flow_Processor.aspx
