New keyence cz-K1 rgb digital fiberoptic color sensor
For sale are NEW Keyence NPN CZ-K1 RGB Digital Fiber Optic Amplifiers.
- I currently have 3 available.

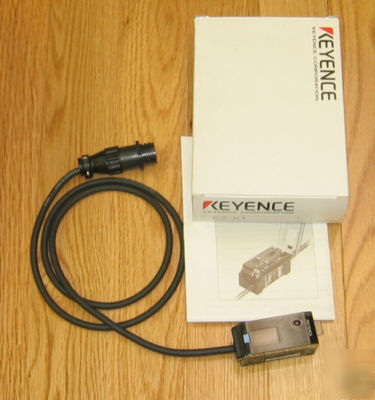

- 2 are exactly as pictured and the other one has no plug on the end.
- 2 of them have instruction manuals.
- All of them It come with the original box.
Industry s highest color resolution. RGB digital amplifier has 12-bit resolution for all 3 colors. Built in self-stabilizer monitors each LED
Units have 3 methods of detection
http://www.keyence.ca/products/sensors/fiberoptic/cz/cz.php
Light source Red LED, Green LED, Blue LED
Response time 300 ?s/1 ms (switch selectable)
Output: Red LED, Calibration: Orange LED,
External synchronization input: Green LED,
Matching rate/received light intensity: LCD (Red/Green)
Error indication Excess light intensity, insufficient light intensity,
Calibration method 1-point/2-point calibration (switch selectable)
Tolerance value adjustment Numerical value setting on digital display
Differentiation mode C mode/C + I mode/I mode (switch selectable)
Timer function Timer OFF/OFF-delay timer (40 ms) (switch selectable)
Match output: Turns on when target color matches registered color.
Mismatch output: Turns on when target color is different from registered color. (switch selectable)
External synchronization input Non-voltage input, Response speed: 500 ?s max.
External calibration input Non-voltage input, Input response time: 20 ms min.
Registered color selection 8-bank selection (By external input), Non-voltage input,
Input response time: 20 ms min.
Control output NPN or PNP open-collector: 40 VDC max. (100 mA max.), Residual voltage: 1.0 V max.
Protection circuit Reverse-polarity protection (power supply), overcurrent protection (output), surge absorber (output)
Power supply 12 to 24 VDC 10%, Ripple (P-P): 10% max.
Current consumption 75 mA max.
Ambient light Incandescent lamp: 5,000 lux max.,
Ambient temperature 1. -10 to +55 C
Vibration 10 to 55 Hz, 1.5 mm double amplitude in X, Y, and Z directions, 2 hours respectively
Shock 500 m/s2 in X, Y, and Z directions, 3 times respectively
Housing material Polycarbonate
Weight (including 2 m cable) Approx. 115 g
