Lincoln electric cv-655 mig welder, 230/460V K1480-1

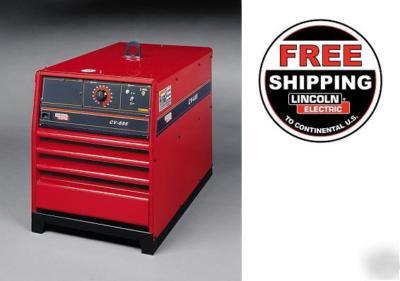

Lincoln Electric CV-655 MIG Welder, 230/460V 3 Phase 60 Hz
Energy efficiency, reliability and exceptional performance are what set the CV-655 apart from the rest. Designed primarily for heavy-duty applications, the CV-655 is an outstanding choice for MIG and flux-cored welding on mild steel, stainless steel, aluminum and alloys. This sturdy, powerful DC power source handles CV semiautomatic submerged arc welding and arc gouging with ease. Equipped with electronic and thermostatic protection, PC boards with built-in diagnostics and solid state contactors, the CV-655 is built to last.
Calibrated output control lets operator accurately regulate power levels.
Line voltage compensation maintains weld consistency, even with line voltage changes of 10%.
115-volt duplex receptacle provides 20 amps of auxiliary power.
Separate output studs allow the operator to select high or low inductance.
Panel switches allow operator to change settings at the power source or wire feeder.
Solid state circuitry provides extra long life during repetitive applications.
Dimensions (in): 27.5 H x 22.2 W x 38 D
Processes: MIG, Flux-Cored, Submerged Arc, Gouging
Rated Output: CV: 650 Amps / 44 Volts / 100% Duty Cycle
Output Range: 70-815 Amps DC, 13-44 Volts
