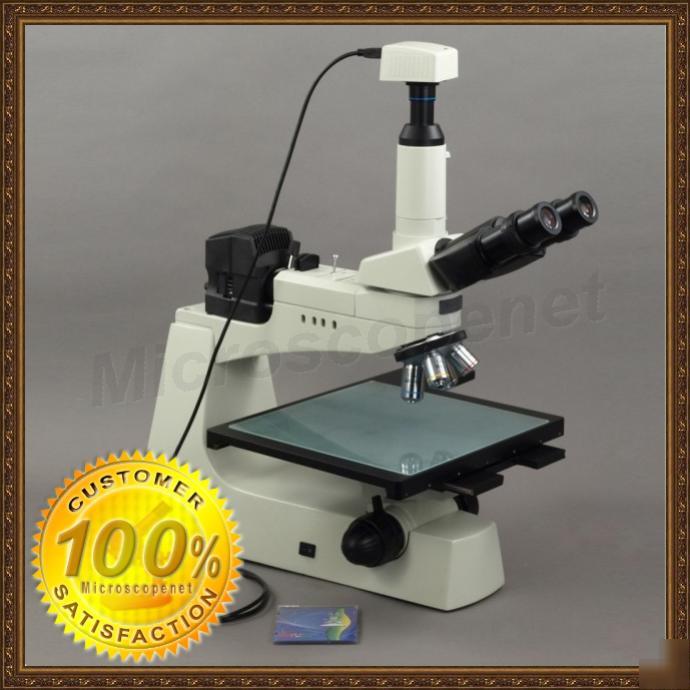

Large stage industrial microscope with 3.0MP usb camera
40x~800x Large Stage Industrial Inspection Microscope
with 2048x1536 Pixels (3.0MP) USB Digital Camera
This microscope is designed for large area inspection. It has a reflected lighting system which is different from regular low power stereo microscopes. It also has large working distance objectives (3.7mm for 40x objective) which is absence in regular high power compound microscopes. The PLAN achromatic objectives assure high image quality from center to edge. The stage has large moving range (10"x10") with coarse and fine coaxial knobs and a unique hand-push fast movement mechanism. It also can work as a polarizing microscope with the included polarizer/analyzer inserts.
* Sturdy base ensures still image at high powers
* Large stage and large movement range
* Comfortable lower-front coarse and fine focus knobs
* Hand-push fast movement mechanism
* Standard C-mount and 23.2mm eyetube included for digital photography
* Infinitive long working distance PLAN objectives
* Extra widefield eyepieces (EW10X/22)
* Wide range interpupillary distance (48mm-75mm)
* Color and diffusion filters included
* Polarizing elements included
* 2048x1536 (3.0MP) high resolution digital camera with built-in 0.5x reduction lens to get larger field of view
* High speed USB 2.0 connection with computers. Compatible with Windows 2000/XP/Vista. Advanced software applications included
* Head: 30 Inclined 360 rotatable Seidentopf trinocular
* Eyepieces: extra wide field EW10X/22
* Interpupillary distance: 48mm-75mm
* Objective: plan field achromatic DIN 4x, 10x, 20x, 40x(S), 80x(S)
* Objective working distances: 4x-25.4mm, 10x-11mm, 20x-6mm, 40x-3.7mm, 80x-0.2mm
* Objective field of view: 4x-6mm, 10x-2mm, 20x-1.06mm, 40x-0.53mm, 80x-0.35mm
* Total magnification: 40x-100x-200x-400x-800x
* Reflected illuminator: 6V/20W halogen
* Resolution: true color 2048x1536 pixels
* Built-in 0.5x reduction lens
* Interface: USB 2.0 (480Mb/sec)
* Frame speed: 4fps at 2048x1536, 24 fps at 640x480. SNR>45dB
* Large stage 11-3/4" x 10-1/2"(300mm x 268mm)
* Large stage moving range: 10" x 10" (254mm x 254mm)
* Stage vertical stroke (focusing travel distance): 1" (25mm)
* Polarizing Elements: 1 polarizer, 1 90-degree adjustable analyzer
* Power supply: 110V/60Hz (US and Canada plug)
* Dimension: 22" x 15-1/2" x 22" (56cm x 40cm x 56cm)
* Net weight: 35lb 6oz (16kg)
Please check the chart below for computer operating system compatibility
* Trinocular inspection microscope body
* 5 plan field achromatic objectives: 4x, 10x, 20x, 40x(spring), 80x(spring)
* Eyepiece: a pair of EW10X/22
* 23.2mm vertical phototube adapter
* USB 2.0 digital camera 2048x1536 with 0.5x built-in reduction lens
* 1 CD including Driver for Windows 2000/XP/ Vista, and processing software applications
* A pair of polarizer/analyzer elements
* 3 color filters, yellow, green, blue
* Extra halogen bulb (6V/20W)
* Consumer digital camera adapters (including DSLR)
Click the button above to view the list of parts and accessories for this product XM836LC30
