Emco 3825-2 10 khz to 100 mhz, lisn
Emco 3825-2 10 kHz to 100 MHz, LISN

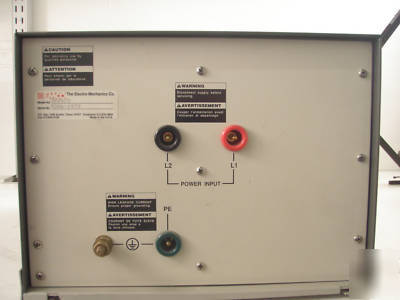

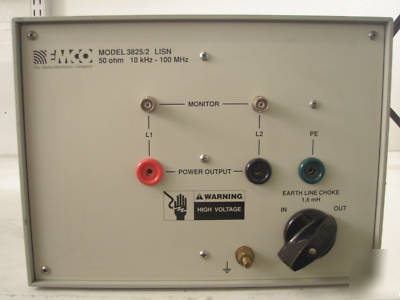

EMCO 3825/2 Line Impedance Stabilization Network (LISN)
The EMCO 3825/2 LISN - Line Impedance Stabilization Network is a multi-line low pass filter network used for conducted emissions measurement. The EMCO 3825/2 isolates an electrically powered EUT from the external power source, stabilizes line impedance for repeatable measurements, and provides a 50 ohm RF connection to measurem EMI voltage generated by the EUT. features:
* Network Inductance Impedance: 50/250 H, 50 ohms
* Frequency Range: 10 kHz to 100 MHz
* Maximum Voltage: 400 VAC Line - Line; 220 VAC Line to Ground
* Power Source Frequency: DC - 60 Hz
