2N3404 complementary transistor audio power output

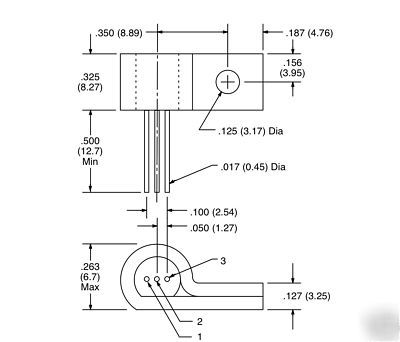

Silicon complementary transistors in a TO92HS type package designed for use in general purpose industrial circuits. These devices are especially suited for high level linear amplifiers or medium speed switching circuits in
industrial control applications.
Absolute Maximum Ratings: (TA = +25 C unless otherwise specified)
Collector Emitter Voltage, VCEO 50V
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Collector Base Voltage, VCBO 50V
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Continuous Collector Current (Note 1), IC 500mA
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Total Power Dissipation (TC = +25 C, Note 1), PT 900mW
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Total Power Dissipation (TA = +25 C), PT 560mW
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operating Junction Temperature, TJ +150 C
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Storage Temperature Range, Tstg 55 to +150 C
Lead Temperature (During Soldering, 1/16 1/32 from case for 10sec max), TL +260 C
Note 1. Determined from power limitations due to saturation voltage at this current.
