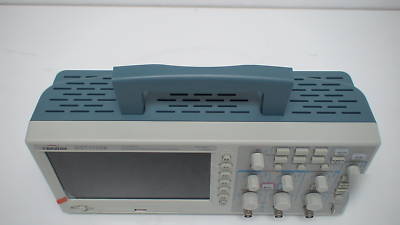

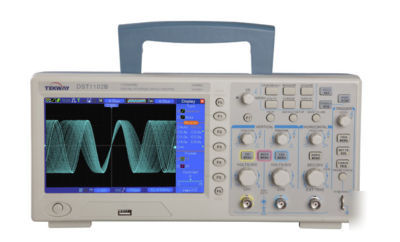

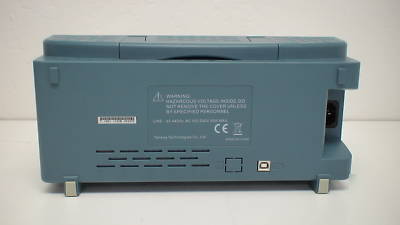

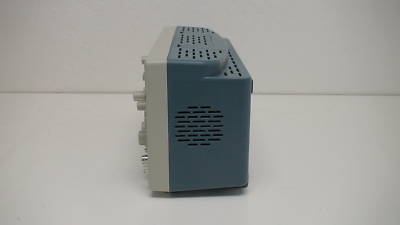

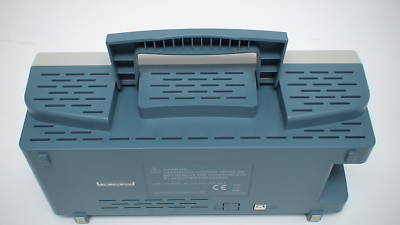

Tekway DST1102B 100MHZ 1GSA/s 2 ch usb oscilloscope
Tekway 100MHZ 1GSa/s 2channels Oscilloscope. New in the box. One year warranty.
Support USB flash drive storage.10 pcs available.

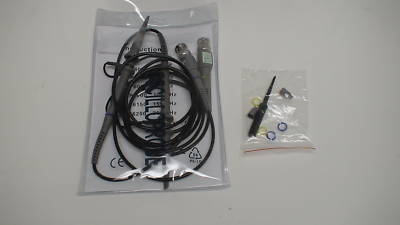

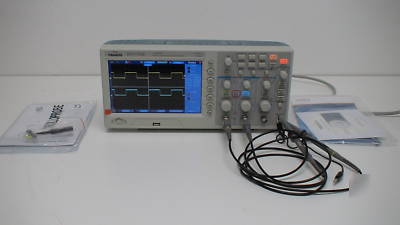

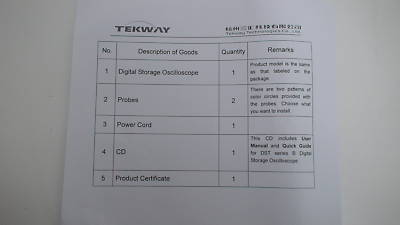

Included: Two P6100 100 Mhz probes, User Manual and Quick Guide in CD format.
ADual-channel:Maximum 512K (4K,16K,40K optional)
The Common Specifications Of All ADS1000 Series Products
Right angle 7"TFT 16-digit color LCD
8-bit resolution, each channel sampled simultaneously
Edge, Pulse, Video, Slope, Alternative, Delay
CH1 CH2 Ext Ext/5 AC: Attenuates signals below 10Hz
Pk-Pk, Max, Min, Mean, Cyc RMS, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width
Window: Hanning, Flattop, Rectangular
Support the sampling rate : 5KSa/s 200MSa/s (in a 1-2-5 sequence)
100-240VAC 47HZ-440HZ 30VA Max
Equivalent Sample Rate 25GSa/s
Record Length(Sample Points) Single-channel: Maximum 1M; Dual-channel:Maximum 512K (4K,16K,40K optional)
SEC/DIV Range 4nS/div-40S/div (in a 2, 4, 8 sequence) Delay Time Accuracy 500ps
A/D Converter 8-bit resolution, each channel sampled simultaneously
VOLTS/DIV Range 2mV/div 5V/div at input BNC
Position Range 50V(5V/div), 40V(2V/div 500mV/div),2V(200mV/div 50mV/div) 400mV(20mV /div 2mV/div)
DC Gain Accuracy 4% for Sample or Average acquisition mode, 5mV/div to 2mV/div
3% for Sample or Average acquisition mode, 5V/div to 10mV/div
"Trigger Sensitivity(Edge Trigger Type)" DC: CH1/CH2(Typical) 1div from DC to 10MHz;1.5div from 10MHz to Full
EXT Typical 200mV from DC to 40MHz
EXT/5 Typical 1V from DC to 40MHz
AC: Attenuates signals below 10Hz
HF Reject: Attenuates signals above 80kHz
LF Reject: Attenuates signals below 150kHz
Noise Reject: Reduces trigger sensitivity
Trigger Level Range CH1,CH2: 8 divisions from center of screen
"Trigger Level Accuracy,typical (Accuracy is for signals having rise and fall times 20ns)"
CH1,CH2: (0.3div V/div) (within 4 divisions from center of screen)
EXT/5: (6% of setting + 200mV)
Edge Trigger on the rising or falling edge
Pulse Width Trigger (when >,<,=, ) on positive or negative pulses Pulse Width Range: 20ns-10s
Video Trigger on an NTSC, PAL, or SECAM standard video signal Line Range: 1-525 (NTSC), 1-625 (PAL/SECAM)
Slope Trigger (when >,<,=, ) on a positive or negative slope Set Time: 20ns 10s
Overtime from the rising or falling edge Set Time: 20-10s
Alternate Internal trigger on edge, pulse width, video or slope
Cursors: Manual: The difference between voltage cursors V; the difference between time cursors T; 1/ T calculated by Hz.
Tracing: The voltage and time at a waveform point
Automatic: Pk-Pk, Max, Min, Mean, Cyc RMS, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width
Type : Right angle 7"TFT 16-digit color LCD
Contrast 16 gears, with the progress bar to show adjustment
Interface USB host and USB slave
