Spectrum analyzer hf-6080
* Australian Government Department of Defence, Australia
* Max Planck Institut f r Radioastronomie, Bad M nstereifel, Germany
* Deutsche Bahn, Berlin, Germany
* Polizeidirektion, Erding, Germany
* Landeskriminalamt Sachsen, Dresden, Germany
* Hochschule f r angewandte Wissenschaften, Hamburg, Germany
* RTL Television, K ln, Germany
CONFORMING TO STANDARDS and EXACT
RF Measurement in this price range has never been this PROFESSIONAL.
The highly complex calculations in spectrum analysis incl. exposure limit calculation is being performed, unnoticed in the background, by a high-performance DSP (digital signal processor). This ultra-fast processor even allows REAL-TIME display in all EMF (LF) versions of the SPECTRAN series (could you ask for more?). Simply amazing!
Professional RF measurement devices use a frequency dependant measurement approach, the so-called spectrum analysis. In a certain frequency range, the individuals signals and their respective strengths are being broken down, for example into a "bargraph" display (see SPECTRAN screenshots on the right). The height of the individual bars represents the corresponding signal strength. For the 3 strongest signal sources, SPECTRAN automatically displays the exact frequency and signal level, thanks to its "Auto Marker" feature. Of course, you can also setup the filter width and the frequency range to be analysed as you like.
In the RF spectrum shown, a frequency range of approx. 100MHz to 7GHz from left to right is being analysed (full sweep). During analysis, the Auto Marker feature has determined - fully automatic - three main signal sources:
Signal#1=942MHz (GSM communications) at -63dBm
Signal#2=2024MHz (UMTS) at -23dBm
Signal#3=5832MHz (802.11a WLan) at -42dBm
Thanks to its DIRECT frequency display of the individual signal sources, a doubtless mapping of measurement results to the corresponding radiation sources is possible.
Due to the MISSING frequency reference with low cost broadband units, DRAMATIC misinterpretations can arise: when exposure limits are calculated, these can be wrong by MORE than a factor of 1000!! (this is NOT an error, we do really mean ONE THOUSAND).
RF spectrum display and automatic triple multi-marker display on the digital screen of SPECTRAN (Screenshot)
Well visible: "Frequency hopping" of a DECT portable phone between 1890 and 1900 MHz (Screenshot)
SPECTRAN measurement devices with data logger allow long-term recordings of measurement results over a freely adjustable period of time. This is particularly indispensable for SERIOUS evaluation of exposure by appliances and machinery which have a changing power consumption or radiation strength over time. Examples for these railroads, power lines and plants, but also home appliances and their respective power cables, and various high-frequency transmission facilities like mobile phone transmission towers, mobile phones, radar etc. Depending on the time of day, CONSIDERABLE variation of exposure can occur (see attached graphics). WITHOUT long-term recordings, MASSIVE misinterpretation of total exposure can occur. With long-term data logging using SPECTRAN , the daily variation of exposure can be recorded and analysed. Thus, the ACTUAL total exposure can be evaluated precisely.
Even though SPECTRAN units "only" last 2 to 3 (depending on model) hours with one battery charge, the intelligent "Powerdown mode" enables much longer data logging and measurement timespans. Finally, if this is not enough, the external power supply can be used to extend the recording timespan infinitely.
daily variation of a GSM transmission tower
Daily variation of this RF transmitter discloses EXTREME variation in time
The attached SPECTRAN screenshot demonstrates how it works: At the push of a button, the ICNIRP exposure limit has been chosen among the various available exposure limits. SPECTRAN now automatically calculates convergence of this limit. For achieving this, often thousands of complex calculations have to be performed per second, and a steady scan of the entire frequency range needs to be performed. A true nightmare for every processor. In our test case, the graphic display shows an approximation towards the ICNIRP limit by 6,06%. If you use a HF-6080 you can even cover the total ICNIRP-banwidth (depending on frequency). Hence, even the novice can perform exposure limit calculations ACCORDING TO STANDARDS without having to use complex tables and calculators.
PROFESSIONAL PC analysis software included for free
The PROFESSIONAL PC analysis software demonstrates SPECTRAN's vast capabilities. This software can be used IN ADDITION to SPECTRAN and offers an incredible amount of features. All this for FREE. Just download it from our homepage, and your PC turns into a real spectrum analyser with a huge display:
* MULTI-device capability!!! Remote control of SEVERAL SPECTRAN units. These can be controlled and their data displayed AT ONCE on a single PC.
* HIGH-RESOLUTION!, freely scalable, coloured spectrum display with falloff function..
* Display of CHANNEL IDENTIFIERS!!! for EXACT identification of providers. Channel numbers etc. freely programmable and extensible!
* Up to 10! markers with frequency and level display.
* Intuitive zoom control with very comfortable frequency adjustment.
* High quality "waterfall"-display with TIMECODE. Colour scale freely configurable. Size freely scalable. Optional display of data DIRECTLY ON TOP OF THE GRAPH by pointing with your mouse and CTRL-clicking!
* High-resoution SLOT ANALYSER with 3D display!!
* SUPER-LOGGER: ALL data can be written to disk continuously. File format is readable by spreadsheet applications, for creating custom reports, etc.
* Freely positionable windows for comfortable entry of frequency, RBW, sweeptime etc. etc.
* Various pre-defined profiles for DECT, UMTS, GSM, WLan etc. etc. for instant recall. Incl. optimal parameters and extensive channel information! Freely programmable and extensible!
* Independant main display with SIMULTANEOUS display of dBm, dB V, V/m, W/m2 and A/m, each with AUTORANGE. Freely transposable and scalable.
* SUPERB exposure limit display with various profiles (ICNIRP, Salzburg precautionary values, ECOLOG, etc. etc.). Freely programmable with a virtually infinite amount of display options.
* Functionality to update SPECTRAN measurement device firmwares.
* Freely programmable key assignments and labels for SPECTRAN measurement devices.
* Filemanager and COMPILER for creation and management of YOUR OWN PROGRAMS for SPECTRAN measurement devices.
* "Rename" option for renaming any of your SPECTRAN units (for example, including location) for better identification
AMAZING: The PROFESSIONAL PC software for SPECTRAN. Get to know SPECTRAN's real capabilities!

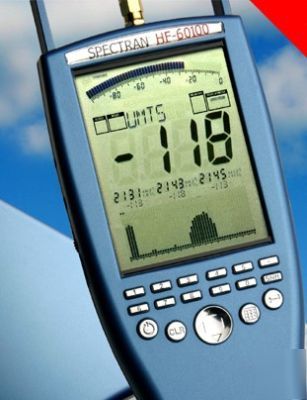

The huge, high resolution digital LC display with more than 80x60 mm in size! It has been developed especially for SPECTRAN by Aaronia. Needless to say, it uses FSTN quality for crystal clear display. It covers a vast amount of display capabilities (listed from top to bottom):
Starting with the SPECTRAN NF-1010E or SPECTRAN HF-2025E, respectively, the rechargable Aaronia NiMH battery is supplied as standard. It has been developed specifically for the SPECTRAN devices and is optimally suited for their requirements. Thanks to NiMH technology, the dreaded "Memory effect" is now a thing of the past, as with this power battery, maximum quality and long life have been our primary goals. Another reason why such a battery technology is necessary is the high power demand of the high-performance DSP used in all SPECTRAN units, especially in the RF versions, which furthermore very demanding RF receiving circuitry. Still, it is astounding that even when using the standard version of the Aaronia battery (1300mAh), continuous operation of the SPECTRAN for approx. 3 hours is possible. The special Lithium Polymer version with 3000mAh (available at an extra charge) bumps this up to a stunning 6,5 hours! This is certainly a new all-time record for portable, battery-supplied spectrum analysers, or do you know a portable spectrum analyser which even remotely provides 6,5 hours of continuous operation with a single battery charge ?
* RF spectrum analyzer SPECTRAN HF-6060 V4, HF-6080 V4 or HF-60100 V4
* HyperLOG 7060, 6080 or 60100 EMC/directional antenna
* Detachable miniature rod antenna
* 1300mAh battery without charger
* Detachable handle with miniature tripod mode
* Exhaustive manual with lots of basic information, hints, backgrund information and exposure limit tables
* 5m resp. 10m LOW-LOSS SMA cable
* 3000mAh LiPo power battery. Enhances operation time to approx. 6,5 hours.
* Additional EMC/directional antenna of our HyperLOG 40xx or 30xx series, or BicoLOG antenna for extending the frequency range down to 20MHz.
INCLUDED WITH DELIVERY: 1.Include :RF spectrum analyzer SPECTRAN HF-6080 2.HyperLOG 7060, 6080 or 60100 EMC/directional antenna is not include!
INCLUDED WITH DELIVERY: 1.Include :RF spectrum analyzer SPECTRAN HF-6080 2.HyperLOG 7060, 6080 or 60100 EMC/directional antenna is not
