New uniq digital readout milling system - dro
**NEW** Birmingham digital mill readout systems
Serviced and parts inventory maintained in California.
The following are the current configuration that are available for the Uniq dro system:
Package Number: UN-1020 milling system
Package Number: UN-942 milling system
Fits 9 x 48/49 milling machines:
Package Number: UN-949 milling system
Fits 10 x 54 milling machines:
Package Number: UN-1054 milling system
No other sizes are available. My suppler only stocks the above sizes.
No you cannot cut down the scales to fit your mill or lathe.
This is a mill system. This system will not fit on your lathe.
The complete system - includes:

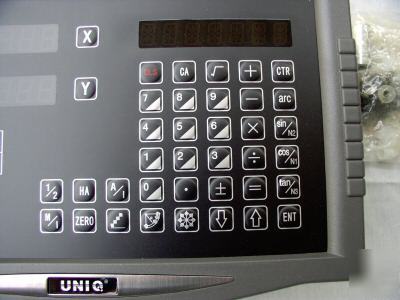

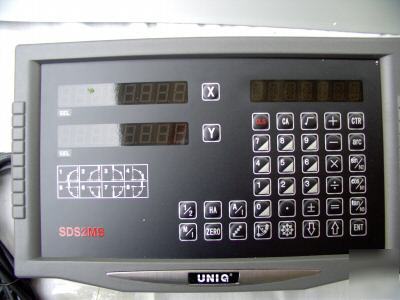

Model DSD2-2MS two axis display
+ , - , X , '/. , = keys for calculation function
"crt" - calculation function key
"arc" key for inverting trigonometric functions
drilling hole in a oblique line key
Angular surface processing key

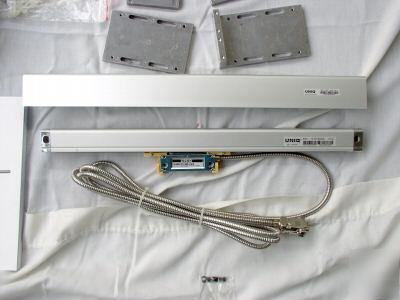

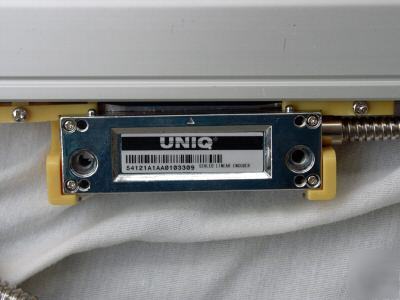

The scales are high precision glass scales.
They are not some flimsy rod that has not been checked for accuracy with a laser!
We show a actual picture of our scale not a drawing like our competition.
You can see what you are getting from us.
The specifications of the scales are below:
Resolution: 5um (0.005mm).0002 inch Output Waveform: SQUARE WAVE

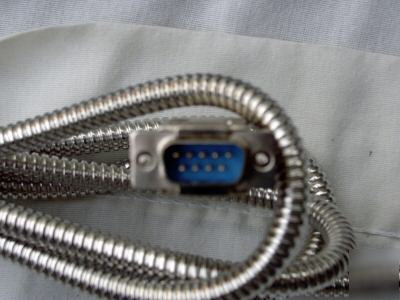

Standard cable length: 3 Meter (about 9 feet)
Add 5.62" to the travel length to know the Overall Length or End to End Length of each scale.
Example: 12" + 5.62" = 17.62" OAL or end to end length.
The package also includes the following:

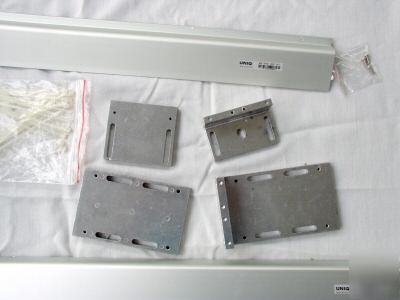

display cover & mounting arm
and mounting hardware for X & Y scales that include covers.
2) Company Checks (require 5 - 7 days to clear).
