Anyvolt 3 switching regulator 3A

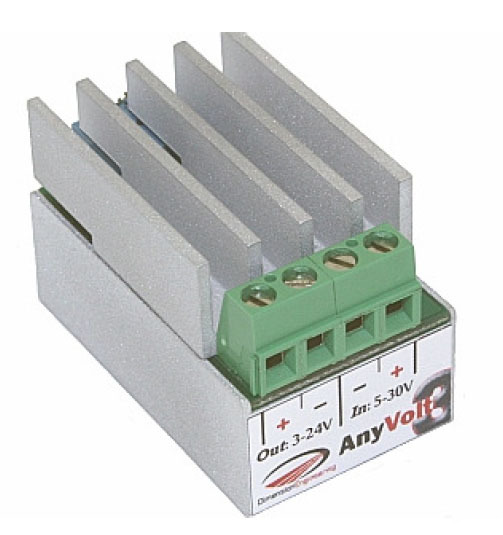

The AnyVolt 3 Universal DC-DC Converter is an adjustable step up / step down 3A switching regulator. The output is adjustable from 3 to 24V. The output voltage is set with a small screw potentiometer on the back of the AnyVolt 3. Once the output voltage is set, it does not matter whether input voltage is higher, lower, or the same as the desired output. The potential applications are endless and only limited by the unit's specifications and your collection of gadgets that require DC power at a different voltage than their supply.
Input power and output loads are connected with reusable screw terminals, so no soldering is necessary.
Performance: 3V to 24V output voltage range
Extended mode operation down to 2.3V
3A max input or output current
<50mV typical ripple at 3A out
Durable screw terminals to connect power / loads
Applications: Lab work and prototyping
Driving multiple LEDs in series
Renewable energy source applications
http://www.technobots.co.uk/Data%20Sheets/1062-027.pdf
