Geodimeter 620 robotic total station - good condition

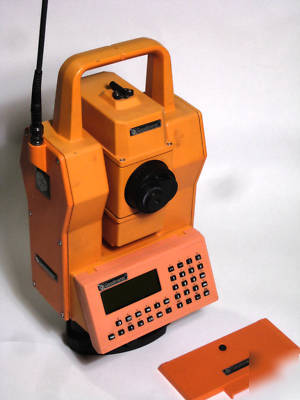

Geodimeter 620 Robotic Total Station
with 2 angle accuracy and dual compensator on V&H axis to compensate tilt error in any directions.
Data transfer to a personal computer data collector with the RS-232 interface as well as 5,000 points of onboard memory. Unit features detachable tribrach for convenience of moving it to different set up locations.

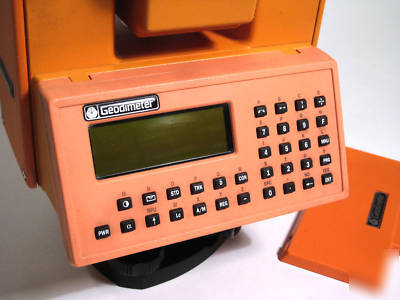

SPECIFICATION: Magnification: 30X Image: Erect Angle accuracy: 2 /1 mgon Angle minimum display reading: 1 /5 Distance measurement: 1Prism: 2,000m/6,500ft, 3Prism: 2,600 m/8,500ft, 9Prism: 3,400m/11,100ft Distance measurement precision: +/-(3mm + 3ppm) Distance measuring time: 0.4s in tracking mode Distance measuring time: 1s in coarse mode Distance measuring time: 3s in fine mode Distance minimum display: 1mm Angle units: Switchable between meter or feet, angle degrees or gon Display: graphic LCD, Max. 40chr. X 10 lines Data input/output: RS-232C compatible, asynchronous serial Data recording: holder Servo driving mechanism: Servo control with slow down function Servo coarse movement shuttle control outside: 7 speed change Servo fine movement: Jog control Min. 1 sec. Servo max. rotating speed: 50 /sec. Servo Max. auto tracking speed: 5 /sec. Tracking range: 700m/2300ft Compensator: Liquid dual axis Compensating range/Accuracy: 5 /0.3 Optical plummet: Erect 3x Weight: 7.9 kg, 17.4 lbs including tribrach and battery

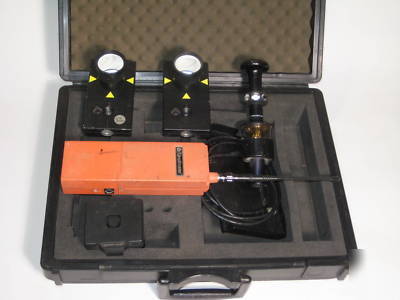

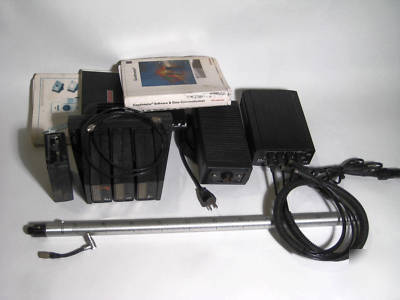

Accessories Include: Super Charger w/power supply and charging cables, 4- NiMh batteries in fair condition, External Georadio for Robotic One person operation, 2 Single diode Remote Targets with Minin Prisms, 1- 360 degree RMT w/ 360 prism, and power rod (Battery condition Unknown) 3 - Power cables, Instrument case and accessories case. Control unit has Minimum onboard software, but capable of collecting data with UDS programs and Setout program for point data. Comes with manuals.
