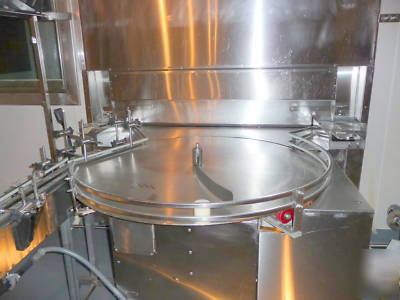

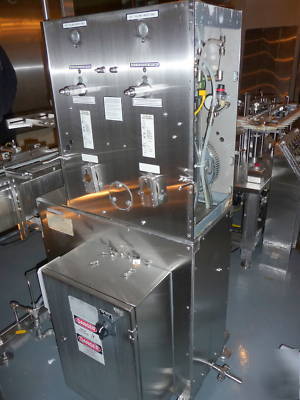

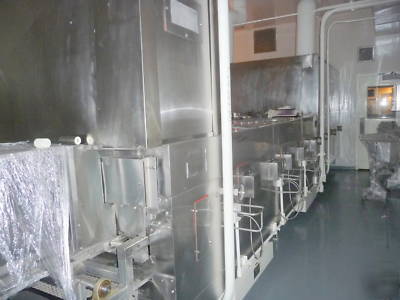

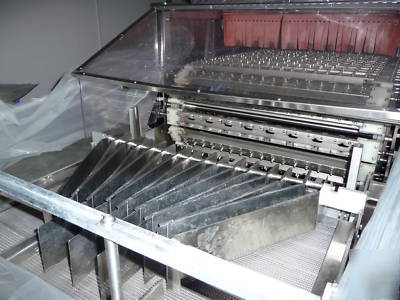

Cozzoli AW160 vial washer and tunnel
Cozzoli Vial Washer and Tunnel with Filler and Stopper
* Model.......................................... AW160
* Cazzoli Serial #............................ AW160-53
* Min./Max. Container Dia............. 1/2" to 3 3/8" - 13mm to 86.1mm
* Washing Needle Centers............. 3 1/2" (88.9mm)
* Max. Container Height................ 7" (177.8mm)
* Machine Speed........................... 6 to 20 cycles per min.
* Max. Hourly Production.............. 9600
* Wash Time Per Station................ Programmable
* Processing Line Connections....... 1 1/2" O.D. Tri-Clover Clamps
Air Vacuum Clean - 2 stations - each station
* Max Air Consumption.................. 80 C.F.H. (cubic feet per hour)
* at 50 p.s.i. (3.5kg/cm).................. 2264 L.P.H. (liters per hour)
* Air Flow Rate.............................. 5.6 C.F.M. (cubic feet per min)
* at 50 p.s.i. (3.5 kg/cm)................. 158 L.P.M (liters per min)
* Vaccum Requirements.................. 100 C.F.M. (cubic feet per min)
* at 3.5" Hg. (89mm Hg.)................ 2832 L.P.M. (Liters per min)
Internal Wash - 6 Stations (3 water, 3 air) 20 P.S.I. (1.4kg/cm) - Each Station
* Water Consumption..................... 83 G.P.H.
* Water Flow Rate......................... 2.1 G.P.M. - 8 L.P.M.
* Air Consumption.......................... 80 C.F.H. - 2264 L.P.H.
* Air Flow Rate.............................. 5.6 C.F.M. - 158 L.P.M.
External Wash - 2 Stations - 20 P.S.I. (1.4kg/cm) - Each Station
* Water Consumption..................... 38 G.P.H.
* (=Water Flow Rate)..................... 144 L.P.H.
External Air Blower - 1 Station - 20 P.S.I. (1.4kg/cm)
* Air Consumption........................... 129.6 C.F.H. - 5184 L.P.H.
* Air Flow Rate............................... 8.64 C.F.M. - 352 L.P.M.
* Liquid Contact Parts..................... Stainless Steel

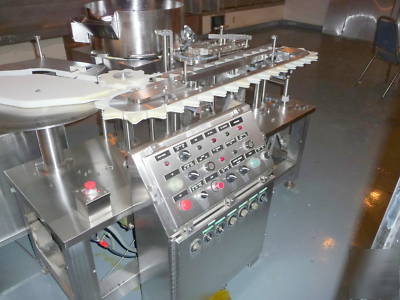

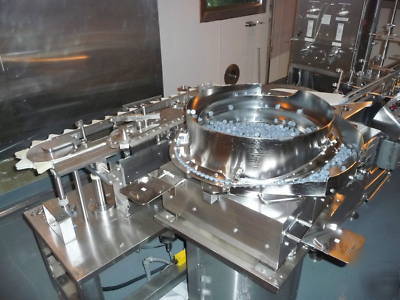

Also Included is a filler and stopper line.

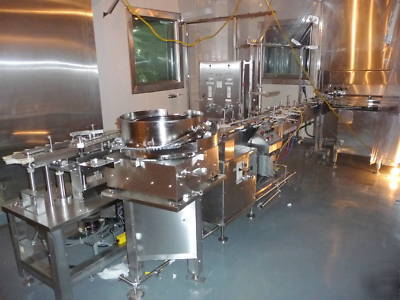

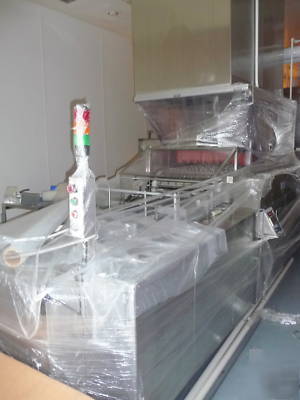

All pieces are in excellent condition and complete assembly line is still on location at pharmaceutical plant in Los Angeles, CA. Can set up appt to view upon request.
