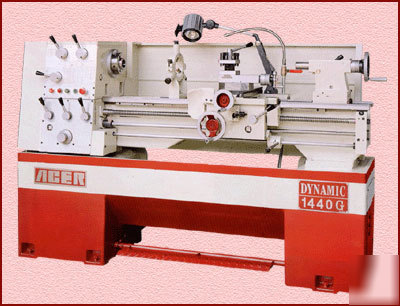

14" Swing 40" Centers Acer 1440G Dynamic Series ENGINE LATHE, 3 HP, D1-4 Camlock w/1-9/16" Spindle B
MODEL: Dynamic Series - E-Lathe 1440G
Swing Over Gap (gap type only): 21"
Spindle Bore Diameter: 1-9/16"
Spindle Speeds: 65-2000 RPM (8 steps)
Max Size Cutting Tool: 3/4" x 3/4"
Pitch of Leadscrew: 25 Diameter, 4 TPI
Metric Pitch Threads: 0.25 - 6mm/pitch (22 kinds)
Inch Pitch Threads: 3-56 TPI (32 kinds)
Module Pitch Threads (optional): 0.25-3.0 MP
Diametral Pitch Threads (optional): 8-112 DP
Range of Longitudinal Feeds: 0.002" - 0.04"/rev. 0.05 -1.0mm/rev.
Range of Cross Feeds: 0.001"-0.02"/rev. 0.025 - 0.5mm/rev.
Packing Dimensions: 78" x 30" x 60"
HEADSTOCK: All gears are made with chromium molydenum steel
and hardened & ground to its accuracy. A forced lubrication
system lubricates all running gears and bearings within the
GEAR BOX: Universal gear box offers a wide range of cutting
capacity. All ranges can be reached by moving three levers and
SPINDLE: 1-9/16" bored spindle is made from medium carbon
steel and is induction hardened & ground to its final accuracy. It
also has a two-point support with both bearings being taper roller.
APRON: Automatic feeding and threading in apron are fully
interlocked to prevent simultaneous engagement of both functions.
TAILSTOCK: Keyed 1-1/2" diametered quill is hardened to
Rockwell C 55 & ground to its inspection accuracy.
24 volts safety control circuit.
Hardened & ground bed ways at Rockwell C 55 .
10" wide bed way with FC-30 casting iron.
