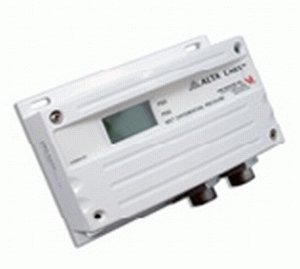

Differential pressure transducer alta labs veris pwx
3-wire Differential Pressure Transducer, Wet Media, 0-100 psig, No Display
SPECIFICATIONS: Input Power 12 to 30VDC/24VAC nominal, Output 3-wire transmitter; user selectable 4-20mA, (clipped and capped)/0-5V/0-10V , Accuracy @ 25 1% F.S. Combined linearity, hysteresis, and repeatability; Range D accuracy 2% F.S.**, Surge Damping Electronic; 5-second averaging, Test Mode Overrides output to full-scale (20mA, 5V, 10V), 0-100 psi (0-6.89 bar) 0-10/20/50/100psid (0-0.69/1.38/3.45/6.89 bar), Product Operating Environment -10 to 55 C (-4 to 130 F); 0 to 90%RH, non-condensing, Long Term Stability 0.25% per year, Zero Adjust Pushbutton auto-zero and digital input (2-pos terminal block), Status Indication Dual-color LED: Green = Normal, Green Blinking = L0w > High, Red = Overrange, Red Blinking = Overpressure, Housing Material White powder-coated aluminum, Media Compatibility media compatible with 17-4 PH stainless steel, Proof Pressure Max. 2x F.S. range, Burst Pressure Max. 5x F.S. range, Temperature Compensated Range 0 to 50 C (32 to 122 F); TC Zero (< 1.5% of product F.S. per sensor; TC Span (< 1.5% of product F.S. per sensor, Sensor Operating Environment -20 to 85 C (-4 to 185 F); 0 to 90% RH non-condensing*, Fittings 1/4" NPT female thread, 17-4 PH stainless
