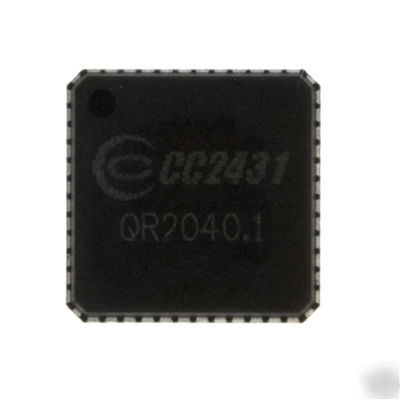

Zigbee CC2431 ic 8051 system with rf location engine
2.4GHz 8051 System-On-Chip with Location Engine
2.4 GHz IEEE 802.15.4 systems
Industrial Control and Monitoring
Low power wireless sensor networks
Set-top boxes and remote controls
The CC2431 is a true System-On-Chip (SOC) for wireless sensor networking ZigBee /IEEE 802.15.4 solutions. The chip includes a location detection hardware module that can be used in so-called blind nodes (i.e. nodes with unknown location) to receive signals from nodes with known location s. Based on this the location engine calculates an estimate of a blind node s position. The CC2431 enables ZigBee nodes to be built with very low total bill-of-material costs. The CC2431 combines the excellent performance of the leading CC2420 RF transceiver with an industry-standard enhanced 8051 MCU, 128 KB flash memory, 8 KB RAM and many other powerful features.
The CC2431 is highly suited for systems where ultra low power consumption is required. This is achieved by various operating modes. Short transition times between these modes further ensure low power consumption.
- Location Engine calculates the location of a node in a network
High performance and low power 8051 microcontroller core.
2.4 GHz IEEE 802.15.4 compliant RF transceiver (industry leading CC2420 radio core).
ZigBee protocol stack (Z-Stack ) from Texas Instruments includes support for CC2431 s location engine.
Excellent receiver sensitivity and robustness to interferers
128 KB in-system programmable flash
8 KB RAM, 4 KB with data retention in all power modes
Very few external components
Only a single crystal needed for mesh network systems Low current consumption (RX: 27 mA, TX: 27 mA, microcontroller running at 32 MHz)
Only 0.5 A current consumption in powerdown mode, where external interrupts or the RTC can wake up the system
0.3 A current consumption in power-down mode, where external interrupts can wake up the system
Very fast transition times from low-power modes to active mode enables ultra low average power consumption in low duty-cycle systems
Wide supply voltage range (2.0 V 3.6 V)
Battery monitor and temperature sensor
ADC with up to eight inputs and configurable resolution
128-bit AES security coprocessor
