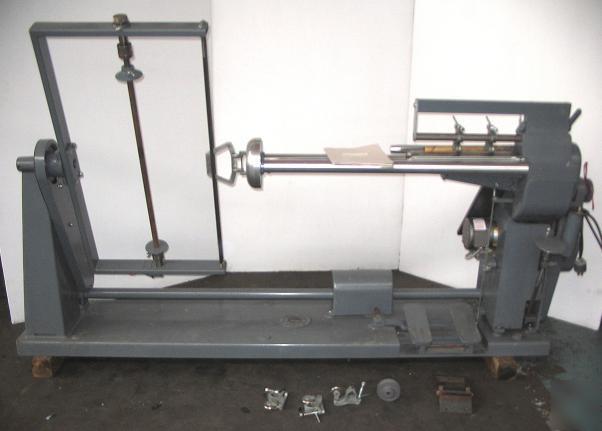

Utica collarette cutter with roll attachment
UTICA COLLARETTE CUTTER WITH ROLL ATTACHMENT
For Cutting Tubular Knitted Cloth the Stretchy Way of the Material
* Machine can be run as fast as operator can handle it.
* Knives are adjustable. operator can change from one width to another in a few seconds.
* Indicating dial enables operator to quickly and easily set and reset the speed of roll correctly to cut from any roll of cloth from 10" to 32" diameter.
* Variable speed motor drive so you can speed it up as your operator improves.
* Machine is at proper height so that operator is in controllable position.
* Cutting directly from a roll you eliminate starting more than once on a roll, saving end waste by this method.
* Roll holding bracket has adjustment so that proper tension can be put on roll. also has quick opening lever to load and unload roll.
* Has trouble free variable speed drive and clutch on roll attachment.
* Has reinforced cutter arm shaft and lower hardened shaft for perfect cutting.
* Made in following width hardened lower shafts where the knives run (9-3/4" not reinforced) (13", 16-1/4", 19-1/2" are reinforced on top and bottom shafts).
* You can cut and roll up as many strips as you have knives that will divide up in the hardened collar space on your machine.
* Has crushing cutters- handles all types of fabrics.
* Standard machine- equipped with 3 knives. more can be added anytime.
* Ball and frictionless bearings- throughout all moving parts.
* Knives- run in ball bearings.
* Main toggle shaft- runs in large enclosed ball bearings.
* Train of gears -running in oil.
* Very rigidly built for long trouble free performance.
* Any standard collarette cutter made by us can be quickly and easily mounted on this device.
Product: CUTTER WITH ROLL ATTACHMENT
