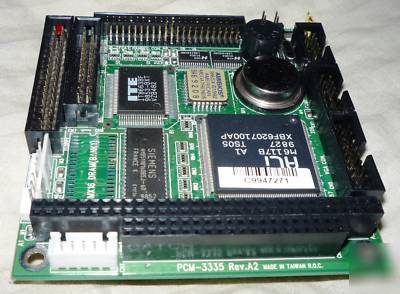

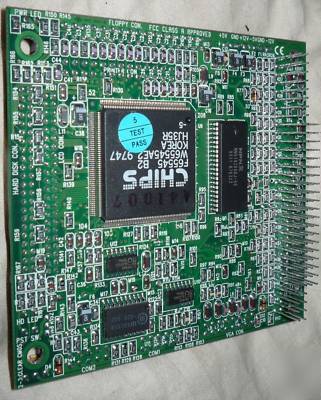

Emac pcm-3335 rev A2, 386SX-40 PC104 sbc
* CPU: Built-in Intel 80386SX-40 compatible CPU.
* AMI Flash BIOS supports LBA mode HDD.
* ISA (PC/104) 16 bit data bus with 32 bit BIOS.
* 2/4 MB DRAM memory with provision for two SOJ type RAMs.
* Supports system and video BIOS shadow memory.
* IDE hard disk drive interface supports up to two IDE (AT bus) hard disk drives with auto detect BIOS.
* Supports two 3.5" (720KB, 1.44, and 2.88MB) and/or 5.25" (360KB and 1.2MB) floppy disk drives.
* One bi-directional printer port (configurable as LPT1, LPT2, LPT3, or disabled). Supports SPP, ECP, and EPP modes.
* Two RS-232 serial ports using 16C550 UART with 16 byte FIFO.
* Supports a standard PC/AT keyboard.
* ISA Bus Flat Panel/CRT VGA interface with 512KB on-board DRAM display memory. Supports CRT and flat panel (TFT, STN, mono and EL display).
* Typical power requirements: +5V @ 2A
