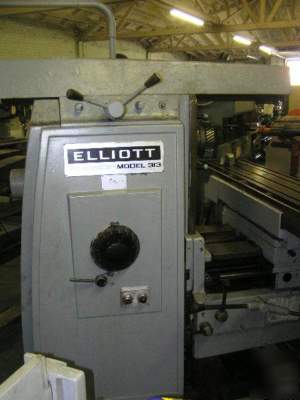

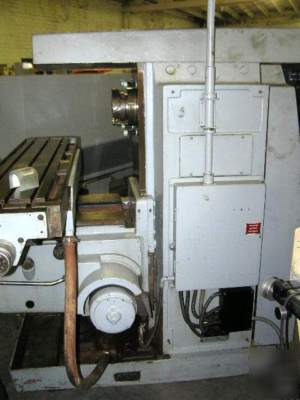

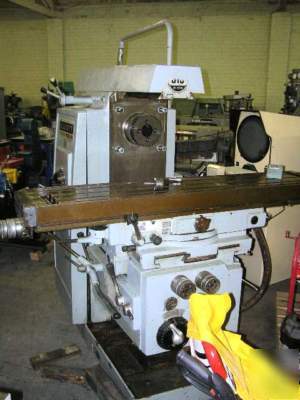

Elliot model 313 series 70 universal mill
ELLIOT MODEL 313 SERIES 70 UNIVERSAL MILL
Table Size.......................14" x 64"
Spindle Motor....................10 hp
Spindle Taper....................50 Taper
Spindle Speeds...................(32) 20 to 2000 rpm
Long.............................34"
Cross............................12"
Vertical.........................17"
Feeds............................(32) 0.5 to 50 IPM
Power Rapid Traverse.............Long & Cross 120 IPM,Vert 60 IPM
Electrics........................220/440v, 3 PH
