> 500PCS metal oxide film resistor 3W 5% axial taiwan

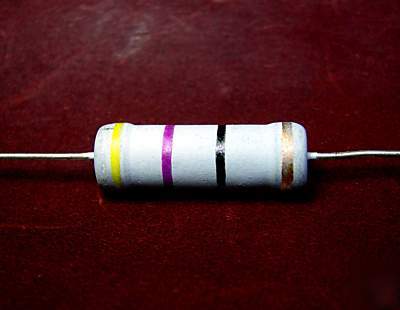

500PCS metal oxide film resistor 3W 5% axial taiwan
Resistor type : Metal oxide Film 3W
Dimension , mm : 17.0x4.0mm LxDia
Dielectric with standing voltage : 1000V
Resistance , ohm +/-5% : 0.5, 1, 2, 3.3, 4.7, 6.8, 8.2, 10, 15
20, 33, 47, 51, 68, 82, 100, 120
150, 180, 200, 220, 270, 300, 330
Resistance , Kohm +/-5% : 1, 1.2, 1.5, 2, 2.2, 3, 3.3, 3.9, 4.7
5.1, 6.8, 8.2, 10, 12, 15, 18, 20, 22
30, 33, 39, 47, 68, 82, 100, 120, 150
180, 200, 220, 240, 270, 330, 390
The resistor shall withstand Overload test in accordance with Artice UL492.2 13 without producing a fire hazard.
No damage on the appearance,co.or bands.
Only one resistance for 500 pcs (1 lot) resistors.
