Tektronix tds 3TRG trg module TDS3000 dpo oscilloscope

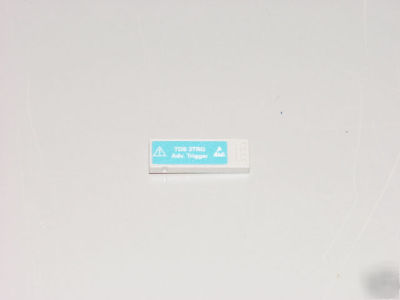

TEKTRONIX TDS 3TRG TRG MODULE TDS3000 DPO OSCILLOSCOPE
* Logic triggering is extremely useful in the troubleshooting of digital circuits. The oscilloscope is triggered when two signals meet a Boolean trigger condition. This module provides pattern and state logic trigger modes.
* Pattern triggering triggers the oscilloscope when two signals become logically true or false. Basically, the pattern-triggering feature triggers the oscilloscope from the output of a two-input AND, OR, NAND or NOR logic gate. You can specify time constraints and signal threshold levels as part of the triggering condition. The trigger is useful for digital logic troubleshooting.
* State triggering triggers the oscilloscope when a state signal is true or false at the time a clock signal transition is true. This trigger is useful for troubleshooting digital logic synchronous state machines.
* Pulse Trigger Features
* Pulse triggering triggers the oscilloscope when a signal meets a timing or threshold condition. The advanced trigger module provides three pulse trigger modes: pulse width, runt pulse and slew rate.
* Pulse Width (or Glitch)
* Pulse Width triggering triggers the oscilloscope when a signal pulse width is less than, greater than, equal to or not equal to a specified pulse width. this trigger is useful for digital logic troubleshooting.
* Runt Pulse triggering triggers the oscilloscope when a signal pulse is less than a specified threshold level. You can also specify runt pulse-width parameters. This trigger is useful for troubleshooting bus-contention problems.
* Slew Rate triggering triggers the oscilloscope when a signal\'s slew rate (rise or fall time) is less than, greater than, equal to or not equal to a specified slew rate. This trigger is useful for troubleshooting digital bus transceivers, transmission lines and op-amp circuits.
This was designed to work with all versions of the Tektronix TDS3000 and TDS3000B Digital Phosphor Oscilloscopes.
This unit is in excellent physical condition and will arrive in the condition shown. It comes with a 14 Day Guarantee against being DOA from receipt.
