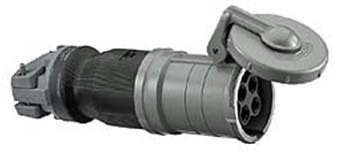

> : hubbell 3P4W 100A 600V pin & sleeve connector
: hubbell 3P4W 100A 600V pin & sleeve connector
HBL4100CS1W - Pin and Sleeve Products
Watertight Insulgrip Connector,
Heat treated and Zinc Plated Steel
UL Listed, UL Standard 1682, UL50 and UL1010 (plugs only), CSA Certified to CSA C22.2 No. 182.1, No.94 and No. 159 (plugs only), UL Listed and CSA Certified Type 4X.
600V AC RMS (i.e., minimum creepage and clearance distance of 6.4 mm, per UL 1682).
Certified for current interrupting at full rated current.
Max 30 C temperature rise at full rated current after 50 cycles of overload at 150% of rated current.
Up to 1,000 connect and disconnect cycles at full rated current and voltage.
Per CSA C22.2 N0. 182.1 / UL1682
Round portable service cords of diameters commensurate with the device rating as defined in UL Standard 62, CSA C22.2 No. 49 and the harmonized European Standards.
Terminals identified in accordance with UL1686 (1, 2, 3, Green).
Identification and ratings are a permanent part of the device housing.
Type 3, 4, 4X per UL 50 and CSA C22.2, No. 94.
UL 94V-0 and CSA C22.2 No.0.17
Maximum Continuous: 75 C; Minimum Continuous: -40 C w/o impact, -25 with impact.
UL Listed, UL Standard 1682, UL 50, and UL 1010 (plugs only) CSA Certified to CSA Spec. C22.2 No. 182.1, No. 94 and No. 159 (plugs only) UL Listed, CSA Certified Type 4X.
The interchangeable product line, INSULGRIP pin and sleeve features metallic where you want it and non-metallic where you need it offers two different styles of grounding.
