Spirent dls 6200 mps wireline simulator dls 6226-2424

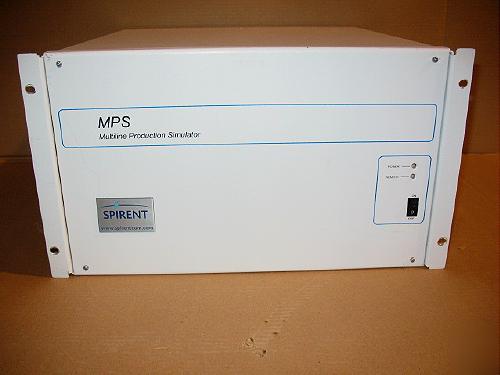

Spirent DLS 6200 MPS Wireline Simulator DLS 6226-2424
The DLS 6200 is a multiline production wireline simulator uses for production testing of xDSL modems. Incorporating new technology and low line-to-line crosstalk, and built with Spirent's proven quality, the DLS 6200 is the next generation multiple line production wireline simulator for testing Central Office equipment such as DSLAMs, NIDs and other high port density applications.
Capable of simulating up to 24 lines of 26 AWG while producing less line-to-line crosstalk than CAT 5 cable, the DLS 6200 is perfect for production or load testing in a multiline environment.
Provides full line simulation of impedance, attenuation and phase to accurately represent cable.
Cost effective tester of DSLAM, NID and other multiport copper access devices.
Effective in any multi-modem environment.
Number of Lines: Between 4 and 24 (depending on configuration).
Individual Line Distance: 12 kft, variable in 500 foot increments for up to 24 lines.
24 kft, variable in 500 foot increments for up to 12 lines.
Attenuation Accuracy: (6.5% + 0.5 dB).
DC Characteristics: 100 mA, 300 V maximum DC.
Control: Computer control via IEEE 488 or RS-232C.
Connections: Side A 1 RJ-21. Side B 1 RJ-21.
AC Power: 100-130 VAC, 60 Hz 7.5 to 11 VDC (max 400 mA).
(AC to DC adapter) 230-240 VAC (+6/-10%) 50/60 Hz to 7.5 to 11 VDC (max 400 mA).
Fuses: Non-replaceable thermal fuse in supplied AC/DC adapter.
(24) Cards Installed MPS 26awg WL, 0-12K ft, 710201-0266, Rev. 2.00
No Manuals, Software or Power Adapter
Overall Good to Very Good Condition.
