> NQ04025VMA15ORS 3.0-5.5V in, 2.5V out @15A synqor qty 1
NQ04025VMA15ORS 3.0-5.5V in, 2.5V out @15A synqor qty 1

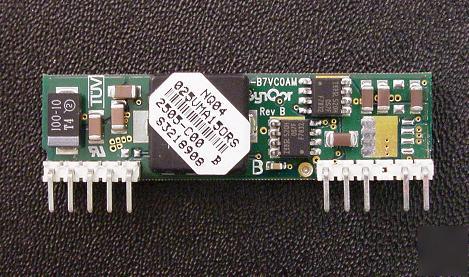

NQ04025VMA15ORS 3.0-5.5V In, 2.5V Out @15A by SynQor
15A Non-Isolated DC/DC Converter in SIP Configuration
DESCRIPTION: The NiQor SIP DC/DC converter is a non-isolated buck regulator, which employs a fixed switching frequency and synchronous rectification to achieve extremely high conversion efficiency. The NiQor family of converters are used predominately in DPA systems using a front end DC/DC high power brick (48Vin to low voltage bus). The non-isolated NiQor converters are then used at the point of load to create the low voltage outputs required by the design. Typical applications include telecom/datacom, industrial, medical, transportation, data processing/storage and test equipment.
* Ultra-high efficiency, up to 94% full load, 95% half
* Delivers 15 amps of output current with minimal derating - no heatsink required
* Input voltage range: 3.0 - 5.5V
* Fixed frequency switching provides predictable EMI performance
* Fast transient response time
* On-board input and output filter capacitor
* No minimum load requirement means no preload resistors required
* Input under-voltage lockout disables converter at low input voltage conditions
* Temperature compensated over-current shutdown protects converter from excessive load current or short circuits
* Output over-voltage protection protects load from damaging voltages
* Industry standard SIP pin-out configuration
* Industry standard size: 2.0 x 0.55 x 0.29 (50.8 x 14 x 7.3mm)
* Total weight: 0.30 oz. (9.4 g), lower mass greatly reduces vibration and shock problems
* Open frame construction maximizes air flow cooling
* Available here in vertical mounting
* Output voltage trim (industry standard) permits custom voltages and voltage margining
* Remote sense (standard option)
These converters are new and unused - taken from manufacturer's original packaging.
