> Intermec easycoder PM4I PM4G net barcode label printer
Intermec easycoder PM4I PM4G net barcode label printer

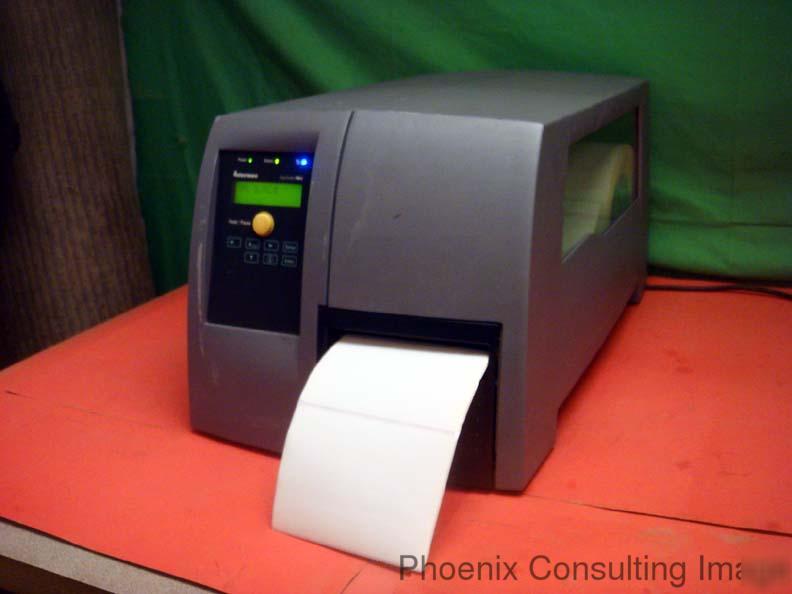

Intermec EasyCoder PM4i PM4G NET BARCODE LABEL PRINTER
* FULL Configuration = PM4G011000300020
Includes TWO (2) Ethernet Connections
Acquired from the US Government. Actual item from lot is shown. Only what is shown is included. Unit powers as shown and is fully guaranteed to function as intended. Includes ribbon but no labels included. Excellent case and many options included. Cutter not included. ALL units are guaranteed functional.
Intermec (PDF) Specs / DataSheet -HERE
DRIVERS for Intermec PM4i - HERE
The EasyCoder PM4i is an industrial printer designed to excel in demanding applications and environments. Utilizing the latest technology, the EasyCoder PM4i features a strong and proven mechanical platform, and powerful newly developed electronics. The EasyCoder PM4i printer acts as a "smart client" executing user-defined programs. This means your EasyCoder PM4i printer eliminates the personal computer, operates additional hardware (e.g. scanners, other printers, conveyors), accesses information from network host, and retains the ability to change as needed with the application for additional functionality. When using the EasyLAN Wireless option for the EasyCoder PM4i, any attached peripheral devices also become part of the wireless infrastructure. Includes Intermec LabelShop START barcode label design software.
-20 C to +70 C (-4 F to +152 F)
Fingerprint/Direct Protocol: XON/XOFF, ENQ/ACK, DTR, RTS/CTS
IPL: XON/XOFF, Intermec Std. Protocol
Industrial Interface (8 digital in/out, 4 analog relays, 1 RS232/422/485 port)
Dual Serial ports RS-232, RS-422, RS-485 and 20mA Current Loop
Wi-Fi Certified, CCX (Cisco ) version 3 Certified
WEP, WPA, WPA2, 802.11x (EAP-TTLS, LEAP, PEAP, FAST), 802.11i
Multiple industrial antenna options for maximized coverage
TCP/IP-suite (TCP, UDP, ICMP, IGMP, etc.), LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP.SNMP-MIB II supported (over UDP/IP), private enterprise MIB included. Supports IPv4 and IPv6.
16MB Flash memory, 32MB SDRAM, 1 Compact Flash slot
1GB CompactFlash memory, multi-GB USB memory device (FAT16/FAT32 USB drivers supported)
Consumption: Standby 15W; Peak 300W
104 mm (4.09 in) at 203 dpi and 406dpi
100 - 200 mm/s (4 - 8 ips) variable (203 dpi)
100 - 150 mm/s (4 - 6 ips) variable (300/406 dpi)
Direct thermal and thermal transfer label, ticket and tag printer. Also available with RFID.
All major 1D symbologies are supported.
All major 2D symbologies are supported.
