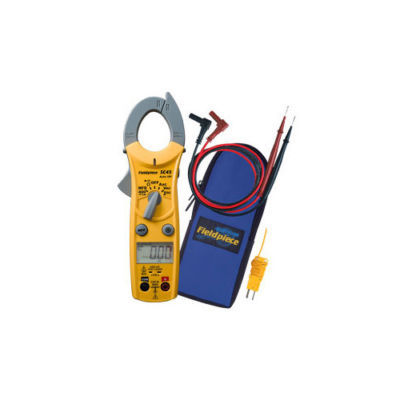

Fieldpiece SC45 mini clamp meter wtemperature hvac/r
The Mini Clamp Meter with Temperature for HVAC/R, model SC45, incorporates a lot of big meter functions into a compact, easy to hold and use design. While it's not exactly an all-in-one multimeter, this manual and auto ranging DMM includes most of the ranges you use in HVAC/R everyday. Along with standard multimeter ranges, it's designed to include capacitance (MFD) and temperature with great compensation. And to add to that still, it has built-in non-contact voltage and a continuity beeper to give you a powerful HVAC/R meter that's 8-inches tall. Makes a great backup or a solid performer for everyday testing.
The SC45 dial is easy to operate with one hand. It's compact design allows you to select the range you need using one finger or thumb and get the job done fast. Be sure to refer to the Operator's Manual for safety information and warnings and use safe testing practices when hooking up your multimeter to any refrigeration or heating system.
Take ambient air or refrigeration line temperatures and more with the built-in K-type port and the included ATB1 wrap tab thermocouple. Add a wet sock (saturated tissue or a shoelace) to take wet bulb temperatures. The built-in temperature junction offers great temperature compensation for more accurate and faster measurements.
Measure microfarads on motor-start and motor-run capacitors to check for degradation. Don't forget to discharge the capacitor before testing.
Using the amp clamp, read 0-400 amps directly on your meter with 0.1 resolution.
The amp clamp is shaped like a jaw to make grabbing a single wire easy using only one hand.
With the NCV tab on the tip of the clamp close to an AC voltage, press and hold the NCV button. The NCV LED will light with an analog feel and the beeper will beep. The closer you get to AC voltage, the louder the beep. The NCV function is sensitive enough to detect 24VAC on thermostats (24V to 600V, 50Hz to 60Hz).
The HOLD button is easily pressed with your thumb while holding the mini clamp meter naturally in your hand. It holds any reading on your SC45 so you can concentrate on the test points, disconnect, and then look at the LCD.
* Range button to switch between auto and manual ranging
The SC45 has features and benefits of many full-size meters in a design that is only 8-inches tall. The built-in non-contact voltage sensor (NCV) sensor tells you if a line is hot or not before you work on it. The continuity beeper tells you if a circuit is open or closed. And the hold button on the side of the SC45 allows you to concentrate on the test point, hold the reading and then look at the display after you've disconnected.
* Mini Clamp Meter with Temperature for HVAC/R - SC45
* One (1) Wrap-Tab K-type Thermocouple - ATB1
* Mini Clamp-On Meter Case - ANC4
* Two (2) 1.5V "AAA" batteries (installed)
