Imi M7305 4 port ssd solid state sata disk drive tester

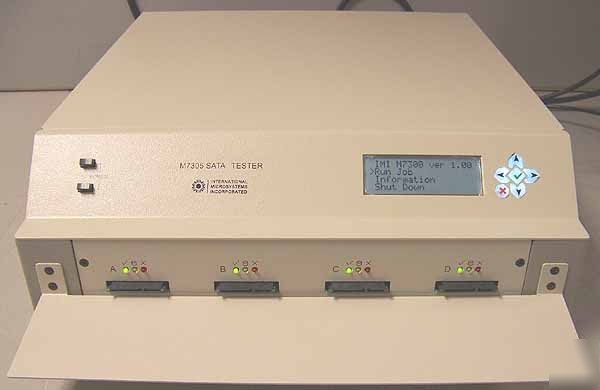

IMI M7305 4 Port SSD Solid State SATA Disk Drive Tester
The M7305 is a Linux based Engineering Tester for SATA Solid State Drives (SSD). The tester
supports functional testing such as read/write functional test, read/write speed test and standby/
dynamic current measurement. In addition the tester can initialize DUT controller that is normally
required as the first step in production testing. The user can also send any standard ATA
* Engineering Tester for SATA Solid State Drives (SSD) Using Standard SATA Connectors
* Intel E6600 2.4GHz Core 2 Duo CPU With 1GB RAM Running Standard Linux 2.6 Kernel
* Supports Generation 1 SATA 1.5G Gbps and Generation 2 SATA 3.0 Gbps
* Adjustable DUT Vcc: 4.5V-5.5V (5V supply) and 3.0V 3.6V (3.3V supply)
* Standby And Dynamic Current Measurement Up To 1.5A With 1mA Increment
* Functional Read/Write Testing And Speed Read/Write Testing In Different Modes PIO, DMA and UDMA Mode
* UT Controller Initialization/Firmware Download
* Test Flow Controlled by TCL Scripts
* Four Test Slots Available for Parallel Testing
* Duplication from a Master Drive to Three Copy Drives
* Fully Stand Alone Linux System with Display and Ethernet Connectivity
* Network Connectivity thru 10/100/1000 Ethernet
* Qty (1) IMI M7305 SSD SATA Disk Drive Engineering Tester
