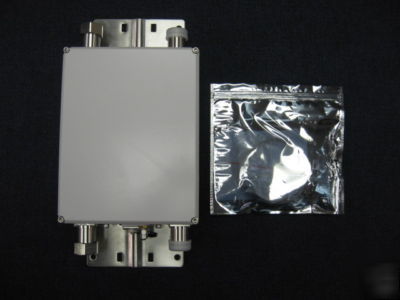

Andrew ETT19V2S12UB tma dual tower mounted amplifier
Andrew ETT19V2S12UB TMA Dual Tower Mounted Amplifier
AWS band, MHz . . . . . . . . . . . . . . . . . . . . 1710 1755
PCS band, MHz . . . . . . . . . . . . . . . . . . . . . 1850 1910
Gain, dB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 1
AWS band, ns . . . . . . . . . . . . . . . . . . . . . . 40
PCS band, ns . . . . . . . . . . . . . . . . . . . . . . . 150
Delay variation any 5 MHz BW maximum
AWS band, ns . . . . . . . . . . . . . . . . . . . . . . 8
PCS band, ns . . . . . . . . . . . . . . . . . . . . . . . 55
Group delay distortion any 240 kHz BW, ns . . . 10 max.
Noise figure mid band, typical
AWS band, dB . . . . . . . . . . . . . . . . . . . . . . 1.2
PCS band, dB . . . . . . . . . . . . . . . . . . . . . . .1.35
AWS band, dB . . . . . . . . . . . . . . . . . . . . . . 1.6
PCS band, dB . . . . . . . . . . . . . . . . . . . . . . .2.1
Return loss, dB . . . . . . . . . . . . . . . . . . . . . . . . . . 18 minimum
Output IP3, dBm . . . . . . . . . . . . . . . . . . . . . . . . . +22 typical
AWS band, MHz . . . . . . . . . . . . . . . . . . . . 2110 2155
PCS band, MHz . . . . . . . . . . . . . . . . . . . . . 1930 1990
AWS band, dB . . . . . . . . . . . . . . . . . . . . . . 0.22 typical, 0.3 max.
PCS band, dB . . . . . . . . . . . . . . . . . . . . . . .0.6 typical, 0.7 max.
AWS band, ns . . . . . . . . . . . . . . . . . . . . . . 15
PCS band, ns . . . . . . . . . . . . . . . . . . . . . . . 18
IMD at antenna port, (2 x +43 dBm), dBm . . . . . . -112 typical
