2000 okuma es-L8 cnc lathe w/okuma osp U10L igf control

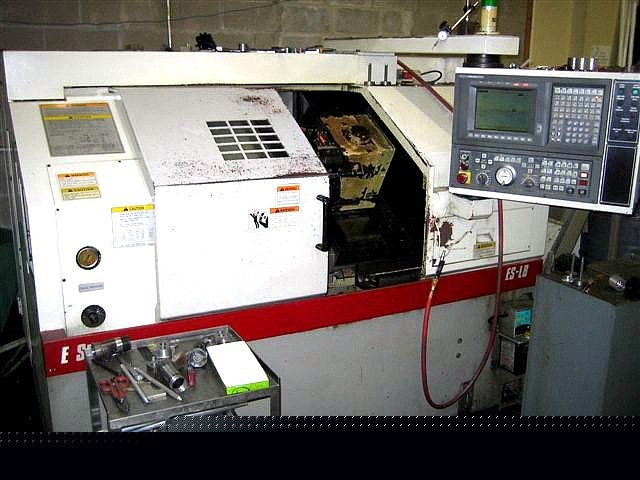

2000 OKUMA ES-L8 CNC LATHE w/OKUMA OSP U10L IGF CONTROL
OKUMA ES-L8 CNC TURNING CENTER
MAXIMUM SWING OVER BED ................. 17.7"
MAXIMUM TURNING DIAMETER ............... 10.6"
MAXIMUM TURNING LENGTH ................. 20.0"
X AXIS TRAVEL .......................... 6.1"
Z AXIS TRAVEL .......................... 20.47"
RAPID TRAVERSE RATE X AXIS ............. 591 IPM
RAPID TRAVERSE RATE Z AXIS ............. 787 IPM
SPINDLE BORE ........................... 2.44"
MAXIMUM BAR CAPACITY ................... 2.0"
SPINDLE SPEEDS ......................... 100 - 4,200 RPM
SPINDLE MOTOR .......................... 10 HP
TURRET CAPACITY ........................ 8 STATION TURRET
TAILSTOCK QUILL TAPER .................. MT #5
TAILSTOCK QUILL DIAMETER ............... 3.54"
TAILSTOCK QUILL STROKE ................. 3.94"
APPROXIMATE DIMENSIONS ................. 131" x 66" x 69"
MACHINE WEIGHT (APPROXIMATE) ........... 9,000 LBS
- OKUMA OSP U10L CNC CONTROL w/ ONE TOUCH IGF, MACMAN, LAP 4
USER TASK 2, THREAD FEED HOLD, NOSE-R 2B, EXP. AUTO CHAMF
TO VIEW A VIDEO OF THIS MACHINE UNDER POWER COPY AND PASTE THIS LINK:
http:// /watch?v=HnIQAnJh3z0
