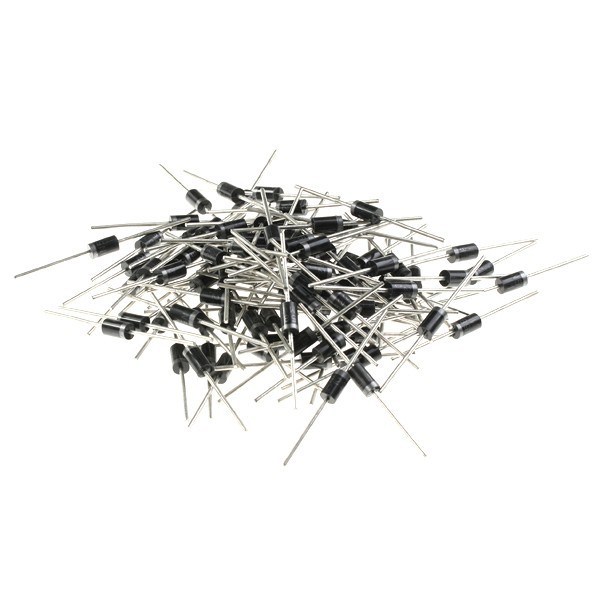

100 pcs 1N5822 3 amp schottky rectifier diode 40V
100 Pcs 1N5822 3 AMP Schottky Rectifier Diode 40V
* Repetitive peak reverse voltage: 40V
* Average forward current: 3A
* Surge non repetitive forward current: 80A
* Storage temperature range: -65 C to 150 C
* Maximum operating junction temperature: 150 C
* Critical rate of rise reverse voltage: 10000V/ s
* junction to ambient: 80 C/W
* junction to lead: 25 C/W
* Reverse leakage current (Tj= 25 C): 2mA
* Reverse leakage current (Tj=100 C): 20mA
* Forward voltage drop (Tj=25 C, IF=3A): 0.525V
* Forward voltage drop (Tj=25 C, IF=9.4A): 0.95V
