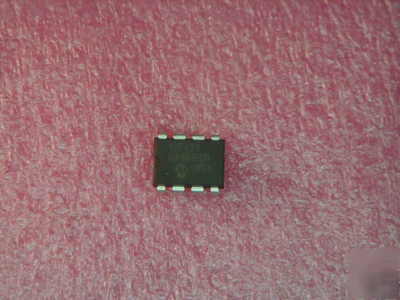

> Pic 12F629 PIC12F629 i/p flash cmos 8-bit 8 pin dil
Pic 12F629 PIC12F629 i/p flash cmos 8-bit 8 pin dil
Only 35 instructions to learn
- All single cycle instructions except branches
- DC - 20 MHz oscillator/clock input
- DC - 200 ns instruction cycle
Direct, Indirect, and Relative Addressing modes Special Microcontroller Features:
Internal and external oscillator options
- Precision Internal 4 MHz oscillator factory calibrated to 1%
- External Oscillator support for crystals and resonators
- 5 s wake-up from SLEEP, 3.0V, typical
High Endurance FLASH/EEPROM Cell
- 100,000 write FLASH endurance
- 1,000,000 write EEPROM endurance
- 8.5 A @ 32 kHz, 2.0V, typical
- 100 A @ 1 MHz, 2.0V, typical
- Programmable on-chip comparator voltage reference (CVREF) module
- Programmable input multiplexing from device inputs
Analog-to-Digital Converter module (PIC12F675):
- Programmable 4-channel input
- 16-bit timer/counter with prescaler
In-Circuit Serial ProgrammingTM (ICSPTM) via two pins
