> New port 461-x-m ultralign linear stage .5"~12MM travel
New port 461-x-m ultralign linear stage .5"~12MM travel

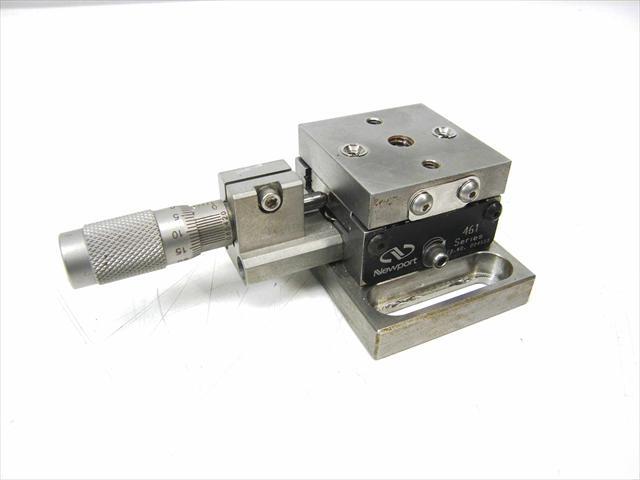

Newport 461-X-M ULTRAlign Linear Stage .5"~12mm Travel
461-X-M ULTRAlign Precision Integrated Crossed-Roller Bearing Linear Stage, 0.5" ~ 12mm X-Travel
* Features stainless steel construction for high stability, with thermally matched, hardened steel crossed-roller bearings for unsurpassed performance. The crossed-roller bearings and precision-manufactured bearing reference surfaces provide exceptionally linear 0.5 inch X travel, with angular deviation better than 100 rad about any axis. Our analysis has shown that optimum stability demands that not only the stage be built of stainless steel, but also the angle brackets, actuator mounts, and even the assembly hardware. ULTRAlign stages overcome the limitations of multi-axis stages derived from traditional tooling industry designs. The actuators are located out-of-the-way of oversized loads. Generous 1/4-20 hole patterns provide easy mounting. The mounting base can be removed for a lower profile.
