> New locknetics 515 power supply 10 amp @ 12 vdc
New locknetics 515 power supply 10 amp @ 12 vdc

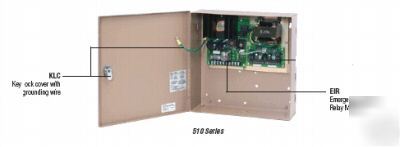

LOCKNETICS 515 10 amp @ 12 VDC POWER SUPPLY
The 515 Series Power Supply provides the greatest current output in the Schlage Locknetics line of power supplies.
The 515 is UL listed, filtered and regulated, with a built-in battery-charging unit.
The 515 Series features modular electronics which offer flexibility, ease and convenience to power electronic locking
systems. Plug-in dual control modules can be added for independent control of up to twelve (12) zones. Each dual
control module (DCM) can provide control for two independent zones. Up to three dual control modules can plug into a control
module rack (CMR) and up to two control module racks can fit into a 515 power supply. A plug-in adjustable relock time delay
module (TDM) is available with a 0 to 30 second delay. It plugs onto each zone of the dual control module to provide up to twelve
TDM s in each power supply, and an emergency interface relay (EIR) module plugs into the main circuit board to provide
interface with approved fire or other emergency systems. A signal from the emergency system will automatically and
instantly unlock all locks connected to the power supply. All of the modules DCM, CMR, TDM and EIR can be easily
installed in the factory or in the field.
