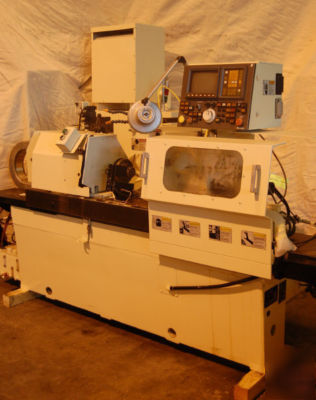

Mitsubishi cnc angular wheelhead cly grinder #24442
12.6" x 19.6" MITSUBISHI CNC ANGULAR WHEELHEAD
New 1992, Serial No. GJ-479, Model RB-32-B50A
Fanuc #16G CNC Controls - Control Gauge
Universal Headstock - Tailstock (Long Stroke)
Work Light - Wheel Mount - Collet Chuck
Swing Over Table, Maximum.............. 12.60"
Workpiece Diameter, Maximum............ 11.8"
Distance Between Centers, Nominal...... 19.6"
Weight Capacity Between Centers........ 330 LBS
Grinding Wheel Diameter, Standard...... 17.9"
Grinding Wheel Width................... 3"
Grinding Wheel Hole Diameter........... 6"
Feed Rate.............................. 0.00004 to 472.5 IPM
Rapid Traverse......................... 39 FPM
Tailstock Stroke....................... 6.5"
Grinding Wheelhead Spindle Motor....... 7.3 HP
Main Motor Horsepower.................. 2.4 HP
Lube Motor Horsepower.................. 4 HP
Weight, Approximately.................. 9900 LBS
NOTE: Base Replacement Cost Is $170,000.00 Taken
EXTRAS: Automatic Sizing Gauge $12,500.00, By
PRICE: F.O.B. OUR WAREHOUSE........... $49,000.00
