20" ogp oq-20S optical comparator, dro, power tbl feed
20" OGP OQ-20S OPTICAL COMPARATOR, DRO, POWER Tbl FEED

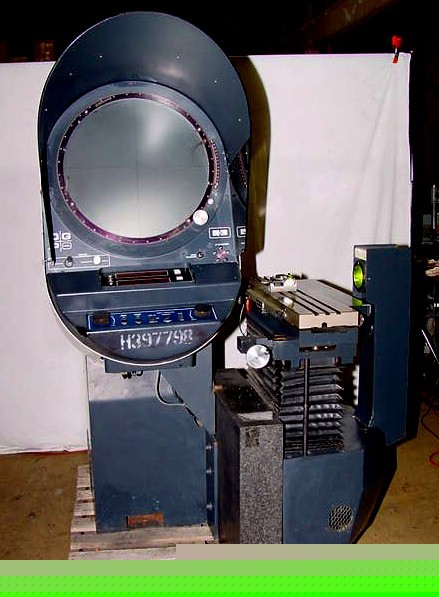

20" Screen OGP OQ-20S OPTICAL COMPARATOR, DRO, POWER TABLE FEED & ELEV., LENSES
20" OPTICAL GAGING PRODUCTS, INC. (O.G.P.)
MODEL: OQ-20S S/N: OQ200200 NEW: 1983
HELIX ROTATION (TO 5 DEG. ARC) ................. +/- 10 DEG.
OPTICAL AXIS TO WORK TABLE W/HELIX TABLE ... 3/4" TO 9- 3/4"
OPTICAL AXIS TO WORK TABLE W/0 HELIX TABLE ....... 2" TO 11"
APPROX. DIMENSIONS ............... 77" F-B x 54" L-R x 78"H
APPROX. WEIGHT .................................. 2,200 LBS.
"DI-METRIC" 2-AXIS DIGITAL READOUT DISPLAY
FUNCTION CONTROL CENTER MOUNTED ON AN IN-BUILT
CONSOLE LOCATED IN FRONT OF THE VIEWING SCREEN
POWER TABLE (LEFT TO RIGHT) (UP AND DOWN)
w/10X, 20X & 50X LENSES LENSES
