Turck inductive proximity sensor 8 mm picofast 3
We've picked up small quantities of genuine Turck all stainless steel
inductive proximity sensors from several automation house liquidations.
These are all superb quality and first rate. They normally sell for

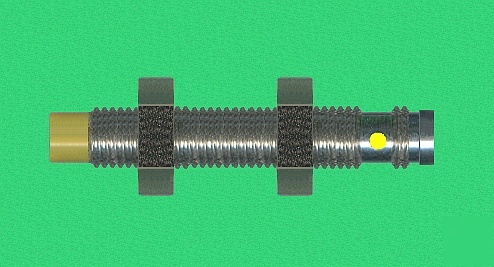

Offered here is one of the Turck 4600620. This is a standard 8 mm
diameter threaded (Metric 8-1 jam nuts) stainless steel bodied sensor
that terminates in a standard PicoFast 3 pin male connector. Connectors for
The units are approximately 50 mm long.
Bringing a steel object within 4.0 mm of the end of the sensor will
light its internal yellow LED driver and activate a PNP transistor
that brings the output pin high. The normal use is as an automation
position sensor for machine arm travel or for sensing the position
of an air or hydraulic cylinder.
Operational voltage is 10 to 30 volts dc and up to 150 ma can be output
The device is extensively protected against most circuit faults
When viewed "mid pin to the right", the top pin is color coded brown
and is the positive supply. The mid pin to the right is color coded
black and is the output. The bottom pin is color coded blue and is
Typical supply current is 15 mils plus any load current.
You can click here for the 4600620 data sheet.
Two mounting nuts included while supplies last. Otherwise, standard metric
8-1 jam nuts from the hardware store can be substituted. Some units may
have black ends instead of yellow ones; they appear equivalent to us.
$5.85. AZ residents add 8.1% sales tax.
Or email us if you need more info.
