New yokogawa eja 440A pressure transmitter dp harp

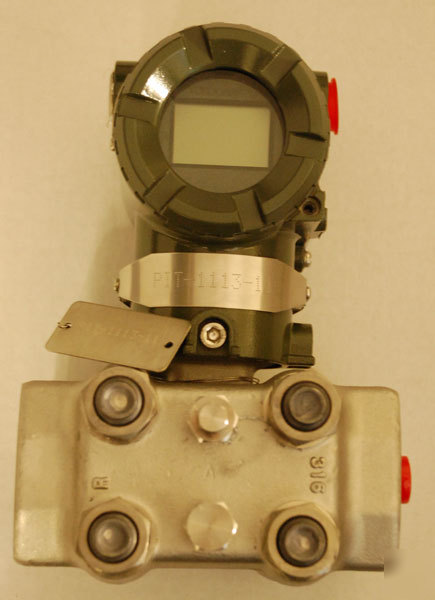

Yokogawa EJA 440A Pressure Transmitter DP Harp NEW
This product is a new, open box, Yokogawa EJA 440A Pressure Transmitter DP Harp.
If we have more than one of these in stock, the item pictured will be identical but may not be the exact item you receive.
* EJA440A Pressure Transmitter
* Mounting brackets and some hardware
The high performance gauge pressure transmitter model EJA440A can be used to measure liquid, gas, or steam pressure. It outputs a 4 to 20 mA DC signal corresponding to the measured gauge pressure.
EJA440A-ECS4B-97EA/FU1/D1/N4
EJA440A ECS4B 97EA FU1 D1 N4
Please refer to manufacturer specifications to double check our description and make sure this model has the features and specifications you need for your application.
We attempted to decipher the Part Number Codes. EJA440A ECS4B 97EA FU1 D1 N4:
Please reference manufacturer literature for our correctness, and for any limitations applicable to your installation or use.
4 to 20 mA DC with digital communication (HART protocol, refer to GS 01C22T01-00E)
Measurement Span (Capsule)
5 to 32 MPa {50 to 320 kgf/cm2} {720 to 4500 psi} {50 to 320 bar}
with 1/2 NPT female process connector (Lower limit of ambient and process temperature is 15C for Capsule code C.)
Horizontal impulse piping type, left side high pressure (If necessary, specify Mounting bracket code A or B.)
1/2 NPT female, two electrical connections and a blind plug
Digital indicator with the range setting switch
SECC Carbon steel 2-inch pipe mounting (flat type)
Also has the Code FU1 which is FF1 and FS1 Combined
Stainless steel tag plate wired onto transmitter
