New waveguide crystal detector hp R422C 26-40 ghz WR28

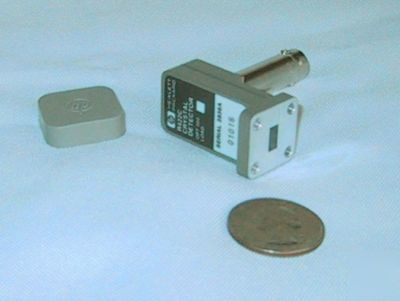

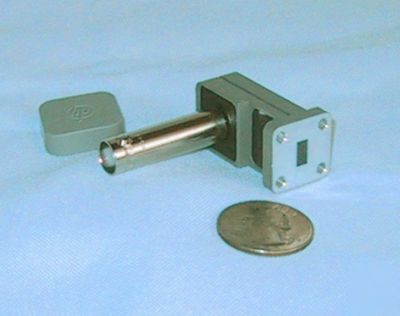

Waveguide Crystal Detecor HP R422C
26.5 - 40.0 GHz WR28 / P-Band / Ka-Band
* HP R422C Waveguide Crystal Detector
* Frequency Response: +/- 0.6 dB
* SWR (into 50 W nominal): <1.78
* Low Level Sensitivity (mv/uW): >0.42
* Maximum Operating Input (avg): 100 mW
* Typical Short Term (less than 1 minute):1 Watt
* RF Bypass Capacitance (nominal): 10 pf
* Current Agilent price over $3,000.00
* Condition: New - Should meet original performance specs.
* Cosmetics: Perfect. Color is HP green.
* Electrical Tested: Yes-minimal. I didn't want to damage the WG flange by connecting , so I did a quick "sniffer" test to see around 10 mV of detected output on O-scope.
