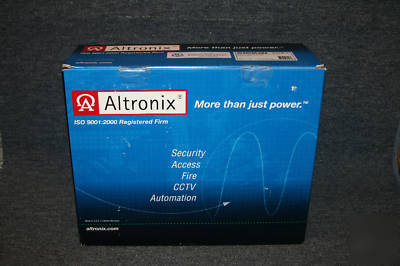

New altronix AL602ULADA nac power extender fire alarm
http:// /index.php?pid=2&model_num=AL602ULADA

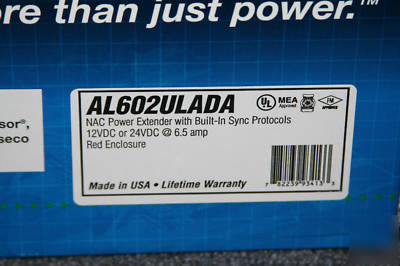

AL602ULADA (Replaces Model AL602UL2ADA)
Model AL602ULADA is an extremely cost effective 6.5 amp voltage regulated remote power supply/battery charger. It may be connected to any 24 volt Fire Alarm Control Panel (FACP). Primary applications include Notification Appliance Circuit (NAC such as strobes and horns) expansion support to meet ADA requirements. It also provides auxiliary power to support system accessories. The unit delivers regulated and filtered 24 volt power to Class B or Class A NAC loop circuits. Additionally, a separate 1.0A auxiliary output with reset for four (4)-wire smoke detectors is available. The 6.5 amp rated supply current can be divided between the four (4) outputs for powering NAC devices. Each output is rated at 2.5 amp max., and can be independently programmed for Steady, Temporal Code 3 or Strobe Synchronization. All outputs may be programmed for Input to Output Follower Mode (output will follow input. i.e. March Time Input, March Time Output). An individual output of 4 amp is achieved by paralleling 2 outputs. In non-alarm condition independent loop supervision for Class A and/or Class B FACP NAC circuits is provided. In the event of a loop trouble the FACP will be notified via the steered input (input 1 or input 2). In addition, there are common trouble output terminals (NC, C, NO) which are used to indicate general loop/system trouble. A common trouble input is provided for optional NC (normally closed) devices to report trouble to the FACP. Two (2) FACP signaling outputs can be employed and directed to control supervision and power delivery to any combination of the four (4) outputs. The unit also features Loop Output trouble memory indication to help identify troublesome sporatic problems.
Model is available in a larger enclosure AL602ULADAJ.
UL Listed Control Units and Accessories for Fire Alarm Systems (UL864).
CSFM - California State Fire Marshal Approved.
MEA - NYC Department of Buildings Approved.
6.5 amp max total alarm current.
Short circuit and thermal overload protection.
Built-in charger for sealed lead acid or gel type battery backup.
Maximum charge current .7 amp.
Zero voltage drop upon transfer to battery backup.
AC input and DC output LED indicators.
AC fail supervision (form "C" contact rated @ 1 amp 28VDC).
Low battery and battery presence supervision (form "C" contact rated @ 1 amp 28VDC).
Class 2 Rated power limited outputs.
Two (2) Class A or two (2) Class B FACP inputs.
Two (2) Class A or four (4) Class B Indicating Circuits.
Two (2) Class B outputs may be paralleled for more power on an indicating circuit.
One (1) Aux. Power Output @ 1 amp supply current (w/Battery Back Up).
Signal Circuit Trouble Memory - facilitates quickly locating intermittent system trouble and eliminates costly and
2-wire horn/strobe Sync mode allows audible notification appliances (horns) to be silenced while visual notification
Input to Output Follower Mode (maintains synchronization of notification appliance circuits).
Compatible with 24VDC or 12VDC fire panels.
Common Trouble inputs and outputs.
Accommodates up to two (2) 12VDC/12AH batteries.
Dimensions: 15.5 H x 12.23 W x 4.5 D.
1.125" and 1.375" combination knockouts.
24VDC @ 6.5A max. Larger Enclosure.
