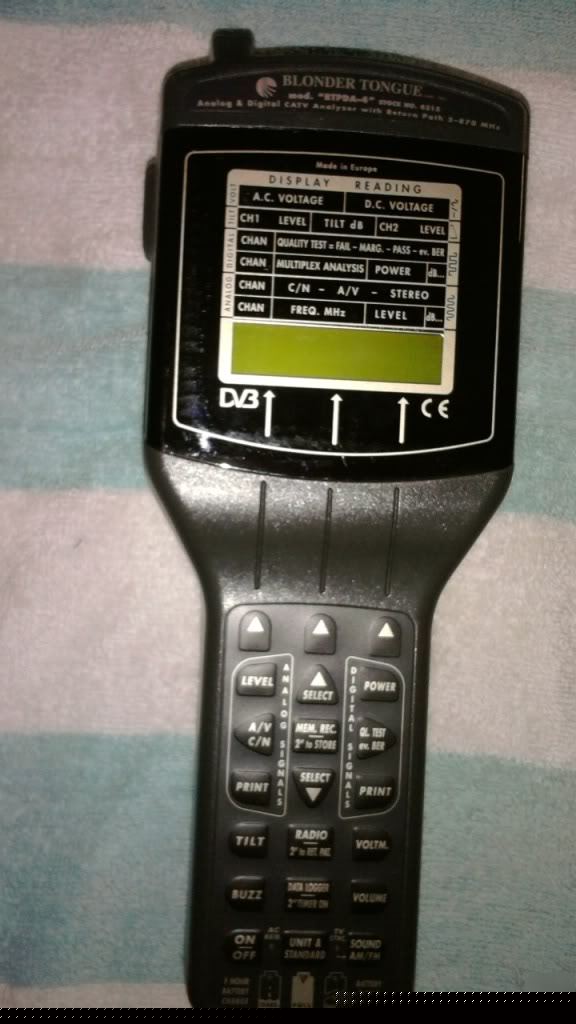

Used blonder tongue digital/ analog analyzer btpda-4
The BTPDA 2 and 4 are professional quality analyzers for measuring analog and digital signals (64 QAM, 256 QAM, OFDM, 8 or 16 VSB). Both instruments have an operating frequency range from 5 to 870 MHz, which supports measurements on off-air channels (2-69), CATV channels (2-135) and sub band channels (T7-T14).
Frequency Range: 5-870 MHz Frequency Channel Reading: Digital Display Selectable Channel Plans: 3 Frequency Resolution Steps: 62.5 KHz Input Impedance & Connector: 75 F Ohm Analog Level : BTPDA-2: 25/126 dB V, -35/+66 dBmV BTPDA-4: 15/115 dB V, -45/+55 dBmV Digital Power: BTPDA-2: 25/126 dB V, -35/+66 dBmV BTPDA-4: 25/120 dB V, -35/+60 dBmV Power and Level Measurement Accuracy @20 C: BTPDA-2: 1.5 dB BTPDA-4: 1.0 dB C/N & A/V Radio Measurement Accuracy at 20 C: 1.5 dB Digital Signal Quality Test on Adjacent Channel Digital Signal Quality Test on the Nearest Channel Digital Power Flatness Digital-Degraded-Analog Digital Power Alarms Too High-Too Low Leakage Measurement: BTPDA-4 Only Measurement Stability According to Temperature: 0.02 dB/ IF Measurement Filter Bandwidth (@ -3dB): 100 KHz Stereo Carrier Presence Low Battery Indication Monitoring
Universal Audio Demod: 5-870 MHz Demodulation Filter Bandwidth (@-3 dB): 100 KHz Audio Output: 0.5 W
Power Supply: Internal NI-CAD 8 x 1.2 V x 1, 4 A External Voltage: 17 VAC or DC 700 mA 230 VAC opt. ( 5.5 x 2.5 Connector on the Battery Pack) or 220 VAC with AC / AC adapter supplied3 LED Battery Charge Monitor: BTPDA-4 Only Back Light Display with Timer Battery Capacity: BTPDA-2: 8 hours BTPDA-4: 16 hours Battery Recharge Time: BTPDA-2: 10 hours BTPDA-4: 2 main, 6 car hours
Material: ABS and Aluminum Dimensions (WxHxD): 4.32 x 11.8 x 2.36 in 11 x 30 x 6 cm Weight Instrument & Battery: 1.76 lbs., 0.8 kg Bag & Transformer: 0.75 lbs., 0.34 kg
