Tektronix TSG1001 programmable tv generator
LoGo image for Video Equipment Clearance home of the New and Used low priced professional broadcast video equipment

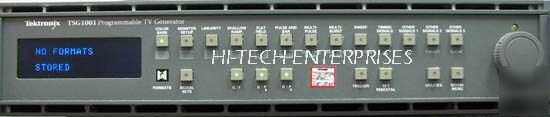

TEKTRONIX TSG1001 PROGRAMMABLE TV GEN
THE PICTURES ARE OF STOCK UNITSThe TSG 1001 provides moving signals for testing complex image processing electronics such as bit rate reduction and motion compensation equipment
The Tektronix TSG1001 Programmable TV Generator is used with the SDP1000 Signal Development unit to provide a versatile system for definition and generation of commonly used and new television signals
Newly created signals can be quickly downloaded to the TSG1001 and output via analog and parallel digital outputs
The signals are generated either with an internal clock or with a user supplied clock
Downloaded signals are saved when the generator is off
The TSG1001s programmable zone plate generator provides complex patterns for advanced testing requirements fixed and swept frequency horizontal vertical diagonal and temporal patterns allow true multi dimensional testing
Working: This Generator powers up and has all working buttons.It has two missing button covers The Multi Pulse and Multi Burst. It could not be interfaced for additional testing purposes.
