Saic mailroom scale metal detector radiation package

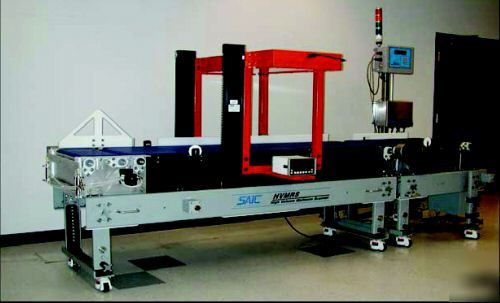

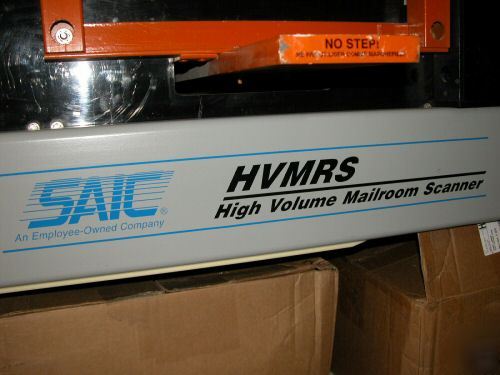

The High Volume Mail Room Scanner (HVMRS) is a fully integrated system for
inspection of mail and packages for the presence of IED's and radioactive materials. It

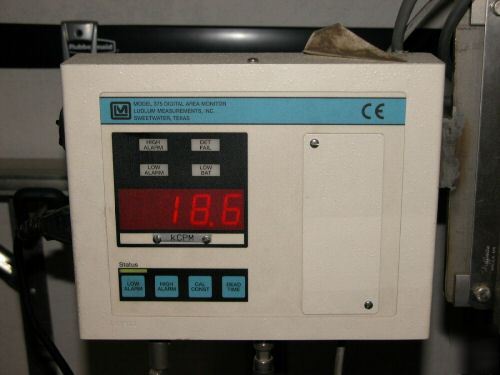

features a nuclear radiation detector, weigh station, and metal detector which control a
divert station. When a "suspect" item is detected, the system alarms, and this item is
segregated for additional inspection. HVMRS is capable of inspecting up to 1,000 items
per hour, with items weighing up to 80 pounds and with dimensions of 22" high by 22"
wide. Inspection data is archived for post-inspection analysis.
The HVMRS is easily transportable and relocatable and takes only hours for disassembly
and reassembly. The HVMRS is simple to use with very little operator involvement. The
HVMRS' fail-safe operation ensures that suspicious items do not pass through without
detection/diversion. The HVMRS is suitable for inspection of outgoing and incoming mail
Max. Item Size: 22" width x 22" height
Range of Detection: Metal: adjustable sensitivity threshold, down to one paper
Clip Weight: adjustable threshold, down to 0 (zero) pounds, in
0.1 pound increments Gamma Radiation: adjustable threshold, down to 1-1/2
Alarms: Light tower with lights for individual threats and audio alarm
Throughput: Up to 1,000 items per hour
Archiving: Weight, metal content and radiation level for each item
Size: 12' long, 3' wide (antenna is 4' wide), 5.5' tall
Utilities: 110 VAC, single Phase
Compressed air at 50 psi (input air up to 129 psi) at 1.5
SCFM (a low volume portable air compressor can be used)

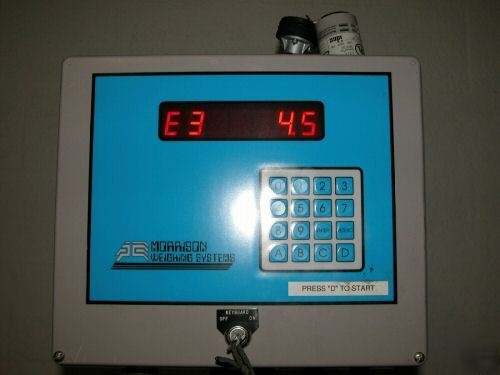

Display: LCD display for perational status and control
Controls: Simple keypad with security lock-out.
Alarms: Individual visual alarms indicate when "suspect" item is detected.
