Microwave logic gigabert 1400 drx error detector
Microwave Logic GigaBert 1400 DRX Error Detector Used
Model/Part No:1400 DRX Our Item ID: 6117

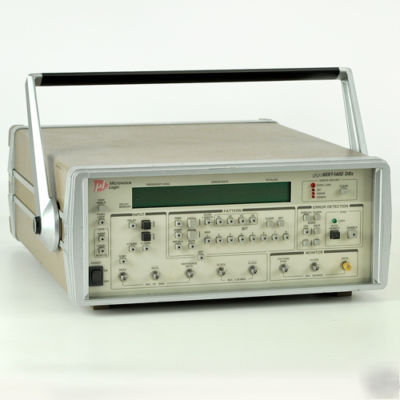

Includes(1) Microwave Logic GigaBert 1400 DRX Error Detector as pictured.
Microwave Logic GigaBert 1400 DRX Error Detector Unit powers up and appears in good condition.
The GB1400 is a general purpose 1400Mb/s bit error rate tester (BERT) built to meet the exacting standards of design engineers who need to verify an characterize high-speed serial data transmission circuits, interfaces and systems. While primarily a lab instrument, the GB1400 s compact design, full computer programmability and relative light weight also enable it to serve in manufacturing ATE and field test applications. SPECIFICATIONS: Frequency range: 1 MHz to 1400 MHz Clock/Data Input levels: (max) 500 mV to 2.0 V p-p Clock Input Threshold: fixed Data Input Threshold: -1.5V to 1.0 V Clock/Data Threshold Resolution: 50 mV steps Clock/Data Input Terminations: GND, AC, -2V Clk/Data Delay Range/Resolution: 4 ns in 5 pS steps Firmware Version: v2.10
