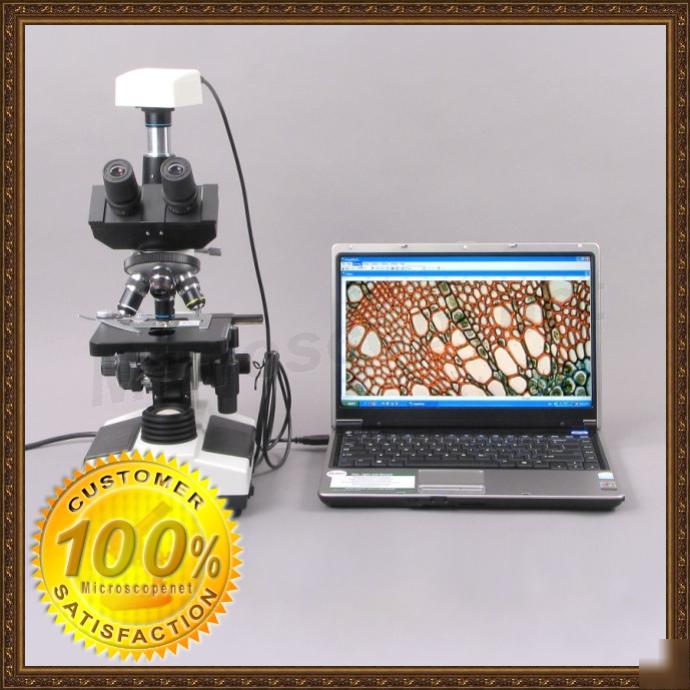

Lab clinic trinocular microscope 40X-1600X +3MP camera
40x~1600x Biological Trinocular Microscope
with 3.0MP USB 2.0 Digital Camera
* Perfect for labs, clinics, universities, and high schools
* 45 inclined 360 swiveling trinocular head
* 2048x1536 (3.0MP) high resolution digital camera with built-in 0.5x reduction lens to get larger field of view
* High speed USB 2.0 connection with computers. Compatible with Windows 2000/XP/Vista. Advanced software applications included
* Height adjustable photo tube
* Sliding interpupillary distance adjustment
* Ocular diopter adjustable on both eyetubes
* High resolution images over a wide field view
* Metal mechanical components
* Coaxial coarse and fine focus adjustment
* Focusing knobs on both sides
* Stage upward moving lock protects objectives and slides
* Large stain-resistant double layer mechanical stage
* Rack and pinion adjustment condenser
* Head: 45 Inclined 360 swiveling trinocular
* Nosepiece: revolving quadruple
* Stage: mechanical double layer size: 5-1/2" x 5-1/2" (140mm x 140mm)
* Resolution: true color 2048x1536 pixels
* Built-in 0.5x reduction lens
* Frame speed: 4fps at 2048x1536, 24 fps at 640x480. SNR>45dB
* Photo tube adjustment range: 3/4" (18mm)
* Focus adjustment: Coaxial coarse & fine knobs on both sides
* Focusing knob can be locked for observation & transportation
* Power supply: 100V~240V 50/60Hz worldwide range (US and Canada plug)
* Dimension: 11" x7-1/2" x 17" (28cm x 19cm x 43cm)
* Trinocular microscope with 4 DIN objectives
* Eyepieces: a pair of WF10X and a pair of P16X
* USB 2.0 digital camera 2048x1536 with 0.5x built-in reduction lens
* 1 CD including Driver for Windows 2000/XP/ Vista, and processing software applications
* Temperature controlled add-on stage
