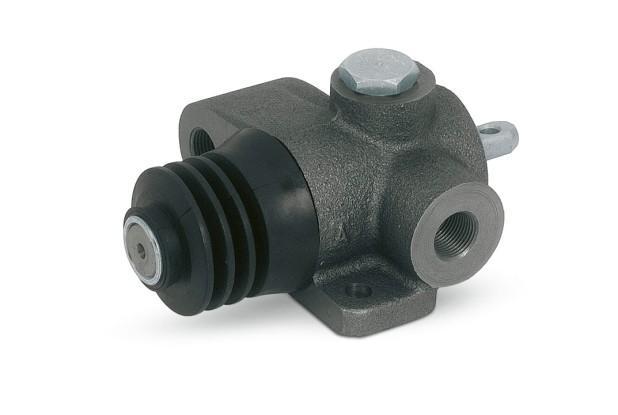

Hydraulic 3/4" end stroke valve - normally open 120L/m
Hydraulic 3/4" End Stroke Valve - Normally Open 120l/m
HYDRAULIC 3/4" END STROKE VALVE - NORMALLY OPEN - V0825
This valve is used to stop oil inlet in a hydraulic circuit or to stop actuator's stroke (Normally opened). The valve closing, obtained by pulling the slider, allows an immediate and total stop of the oil flow.
Applications : Connect P to the distributor and A to the circuit or to the actuator. When slider is operating, flow is blocked from P towards A, whilst the check valve enables free oil flow in the reverse direction (from A towards P).
