> Blue m dcc-1406E clean room mechanical air flow oven
Blue m dcc-1406E clean room mechanical air flow oven
Blue M DCC-1406E Clean Room Mechanical Air Flow Oven
Please use the links below to view other pictures of this unit:

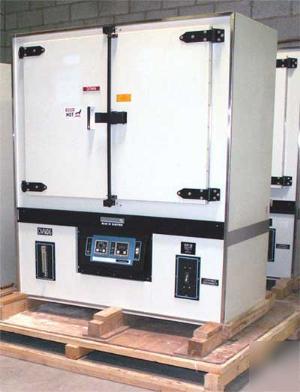

Front View Blue M DCC-1406 Oven
Blue M DCC-1406 Oven with Doors Open
Front Control Panel 1406E Clean Room Oven
Close Up View DC 1406 Control Panel
Back View Blue M DC 1406E Clean Room Oven
Manufacture Tag for the Blue M DCC-1406E
Blue M Inert Gas Mechanical Horizontal Air Flow Convection Clean Room Oven 21.6 cu.ft.
Unit will be verified to Heat
The Blue M Mechanical Convection Clean Room
Oven is suitable for Class 100 or Class 10
areas and designed for a number of applications,
including curing polyamide coatings, moisture
drying, baking photo resist coating and various
* Temperature Range: 15 C above ambient to 250 C (482 F)
* Uniformity: +1% of set-point
* Control Accuracy: +0.5 C
* Interior Volume : 21.6 cu. ft.
* W x D x H (inches): 43.8 x 23.7 x 35.7
* W x D x H (inches): 63 x 38.6 x 75.2
* 208 VAC 3 Ph 50/60 Hz: 18.0 kW
* Line current (per ph): 53
* Heavy gauge steel exterior and stainless steel interior
* All exterior panels are at least 16 gauge.
* Fiberglass insulation - 4 full inches minimizes heat loss.
* Baked on powder-coated white enamel finish for long-lasting
* Blue M silicone door seal design for positive sealing of door.
* Removable one-piece stainless steel interior interior features
reinforced 304 stainless steel.
* All welded and sealed construction assures continuously low
* Chamber vent port for exhausting of process by-products.
* Suitable for inert gas purge to eliminate moisture and vent
out contaminants. Adjustable inert gas flow meter.
* Exclusive Blue M recirculating HEPA filtered air system
* Easily removable Class 100 (M3.5) HEPA filter. All recirculated
air continuously refiltered; no use of clean room air.
* Sealed from the environment to eliminate risk of facility contamination.
* Horizontal air flow assures uniform thermal performance under
* Double plenum design - removable for thorough inner chamber
cleaning, tuned for optimal uniformity
* All stainless steel cooling coil speeds cool down without risk of
contamination, allows near ambient operation depending on cooling
* Exclusive Blue M Eterna heating elements include low-waft density
for longer service life, premium alumina ceramic element insulators
minimize contamination, standard air flow switch on three-phase
models to protect oven and product.
Temperature controller may be different color
