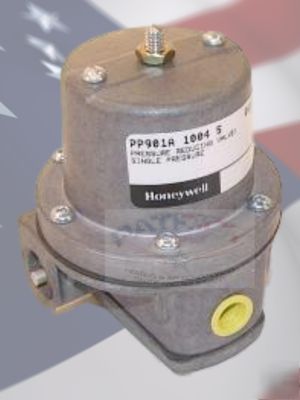

Honeywell PP901A1004 high pressure diaphragm relief val
High Pressure Diaphragm Operated Reducing Valve with Built-in Adjustable Relief Valve for Single Pressure Systems. Includes Mounting Bracket and Gage Taps But No Gages.
Used to control the pressure of the air delivered to pneumatic control systems. Models available for single-pressure systems or two-pressure systems (Day/Night or Summer/Winter) requiring two independently regulated pressure settings. Dual-pressure units switch from the lower settings to the higher settings when main air is applied to the pilot port. Models also available including a sub-micron filter assembly and pressure gauges. Replacement devices are available for Johnson, Powers, Robertshaw, Barber-Colman and older Honeywell pressure reducing valves.
Built-in adjustable safety relief valve for limiting downstream pressure.
For two-pressure models: Pressure changes accomplished with manual switch or automatically with electric pneumatic switch.
Adjustable stops for desired settings.
primary pressure: adj.0 to 25 psi.
primary pressure: adj.0 to 172 kPa.
Inlet and out air: 1/4 in. NPT (female) Air gage: 1/8 in. NPT (female)
11 in. high, 8 7/8 in. wide, 3 3/4 in. deep
279 mm high, 225 mm wide, 95 mm deep
Gage tapping to measure the regulated pressure.
