Generac 400-amp automatic transfer switch #RTSN400A3

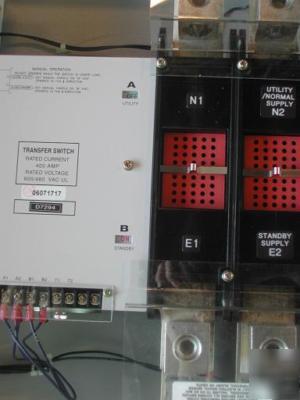

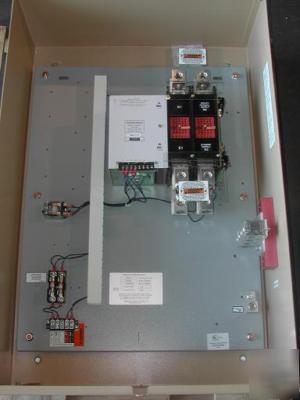

GENERAC 400-AMP AUTOMATIC TRANSFER SWITCH, MODEL #RTSN400A3 (Single Phase)
Generac RTS automatic transfer switches are designed to operate with the digital control used on air-cooled generators. The RTS transfer switch will operate only with the Generac R100 controller. All RTS transfer switches are housed in a steel NEMA 1 or aluminum NEMA 3R enclosure, with electrostatically applied and baked powder paint. The Heavy Duty Generac Contactor is a UL recognized device, designed for years of service. The control connection between the RTS and the Generator Control panel is through #14 wires. The control at the generator handles all the timing, sensing and exercising functions.

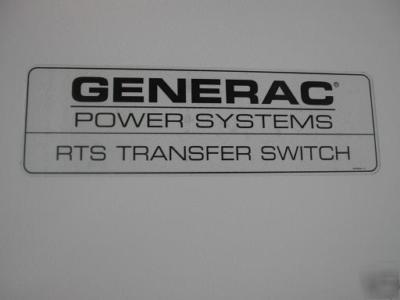

RTS 100-400 Amp Transfer Switch
All Timing and sensing functions originate in the R-Series controller
Utility voltage drop out...............<60%
Timer to generator start..............15 seconds
Engine warm up delay................10 seconds
Standby voltage sensor..............90%
Utility voltage pickup..................>80%
Re-transfer time delay...............15 seconds
Engine cool-down timer..............60 seconds
Exerciser .................................15 minutes every 7 days
The transfer switch can be operated manually without power applied.
Load Transition Type (Automatic): Open Transition
Express Install Kit Included: NO
Withstand Rating (Amps): 18,000
Lug Range: 600 MCM - #4 or 2-250 MCM -1/0
External Dimensions: (H) 36" x (W) 24" x (D) 10"
